Figure 2

From: Chronic olanzapine administration causes metabolic syndrome through inflammatory cytokines in rodent models of insulin resistance

Figure 2

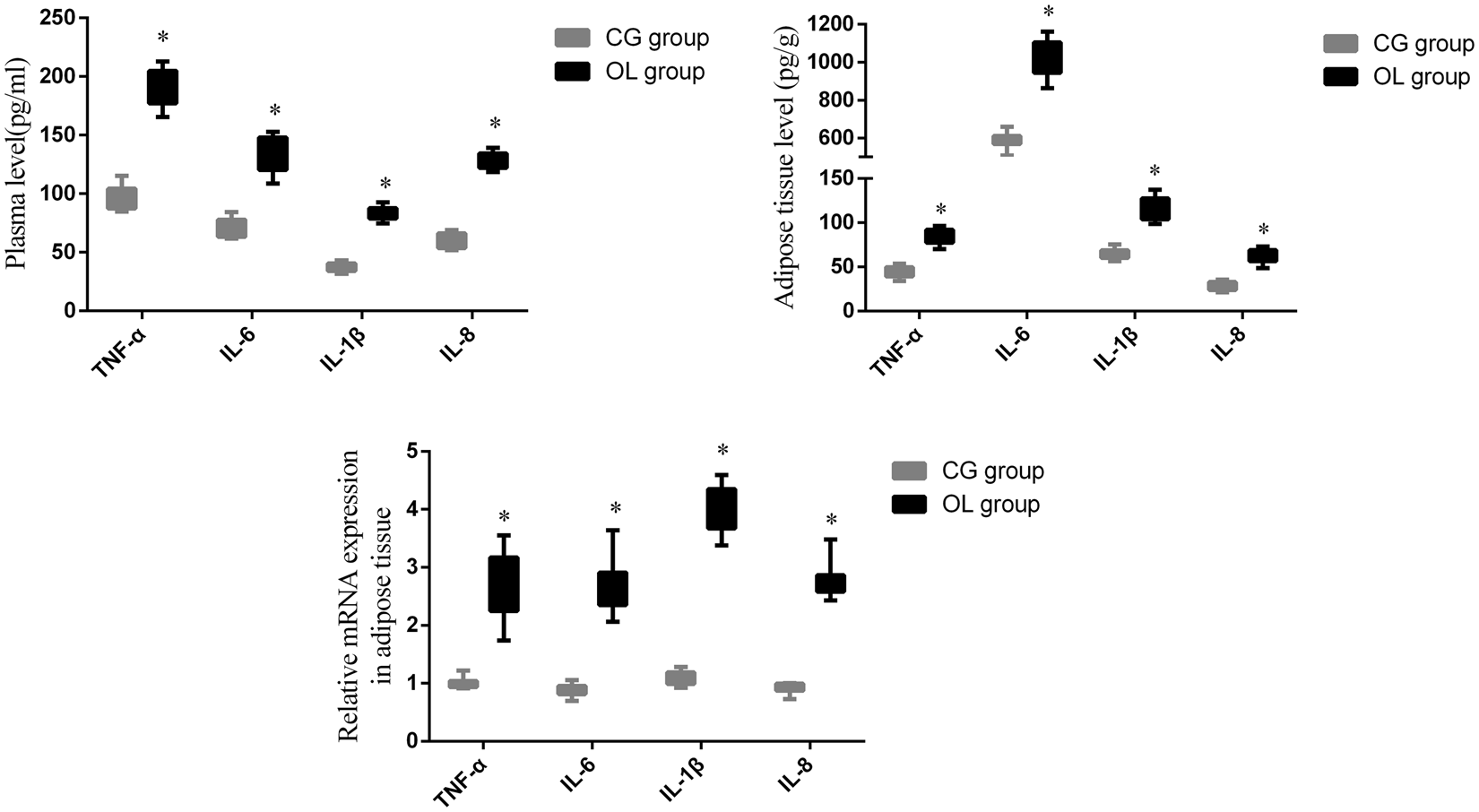

Chronic olanzapine treatment altered inflammatory cytokines in mice. Inflammatory cytokines were correlated to IR. (A) Plasma levels of TNF-α, IL-6, IL-8 and IL-1β in mice. (B) Levels of TNF-α, IL-6, IL-8 and IL-1β in adipose tissue in mice. (C) Relative mRNA expression of TNF-α, IL-6, IL-8 and IL-1β in adipose tissue in mice. Student t-test was used for comparisons of inflammatory cytokines between mouse groups. Data are presented as mean ± SD. *p < 0.05.
