Figure 4

From: Dietary fatty acid source has little effect on the development of the immune system in the pyloric caeca of Atlantic salmon fry

Figure 4

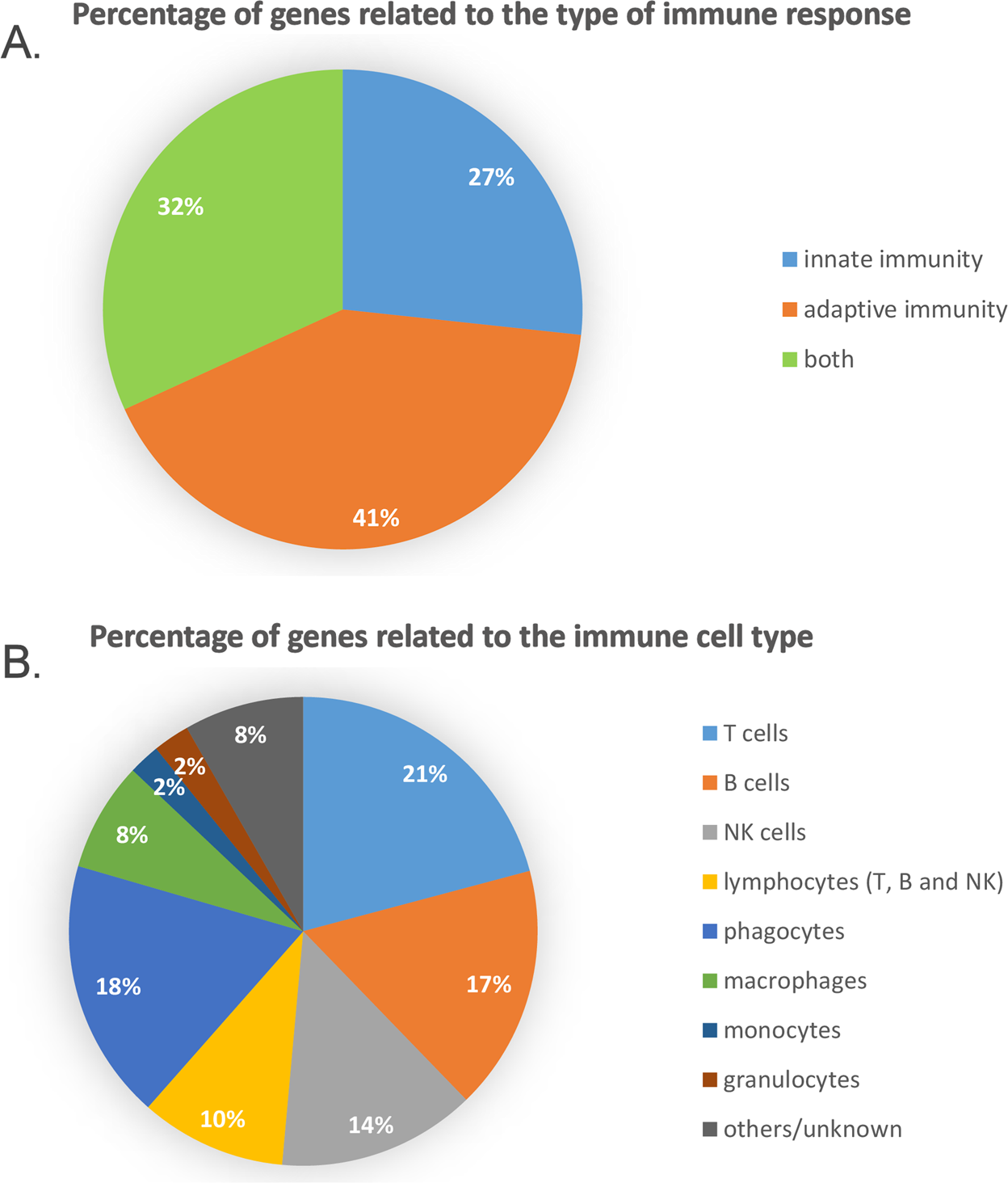

Panel A: Contribution of innate and adaptive immune response to the upregulated DEGs evidenced in pyloric caeca at D48 (see Fig. 2B). Panel B: Involvement of different immune cell types in the modulation of gene expression in pyloric caeca at D48. “Phagocytes” indicates genes whose function could not be unequivocally connected to any of phagocyte subpopulation.
