From: An investigation into non-covalent functionalization of a single-walled carbon nanotube and a graphene sheet with protein G:A combined experimental and molecular dynamics study

Figure 9

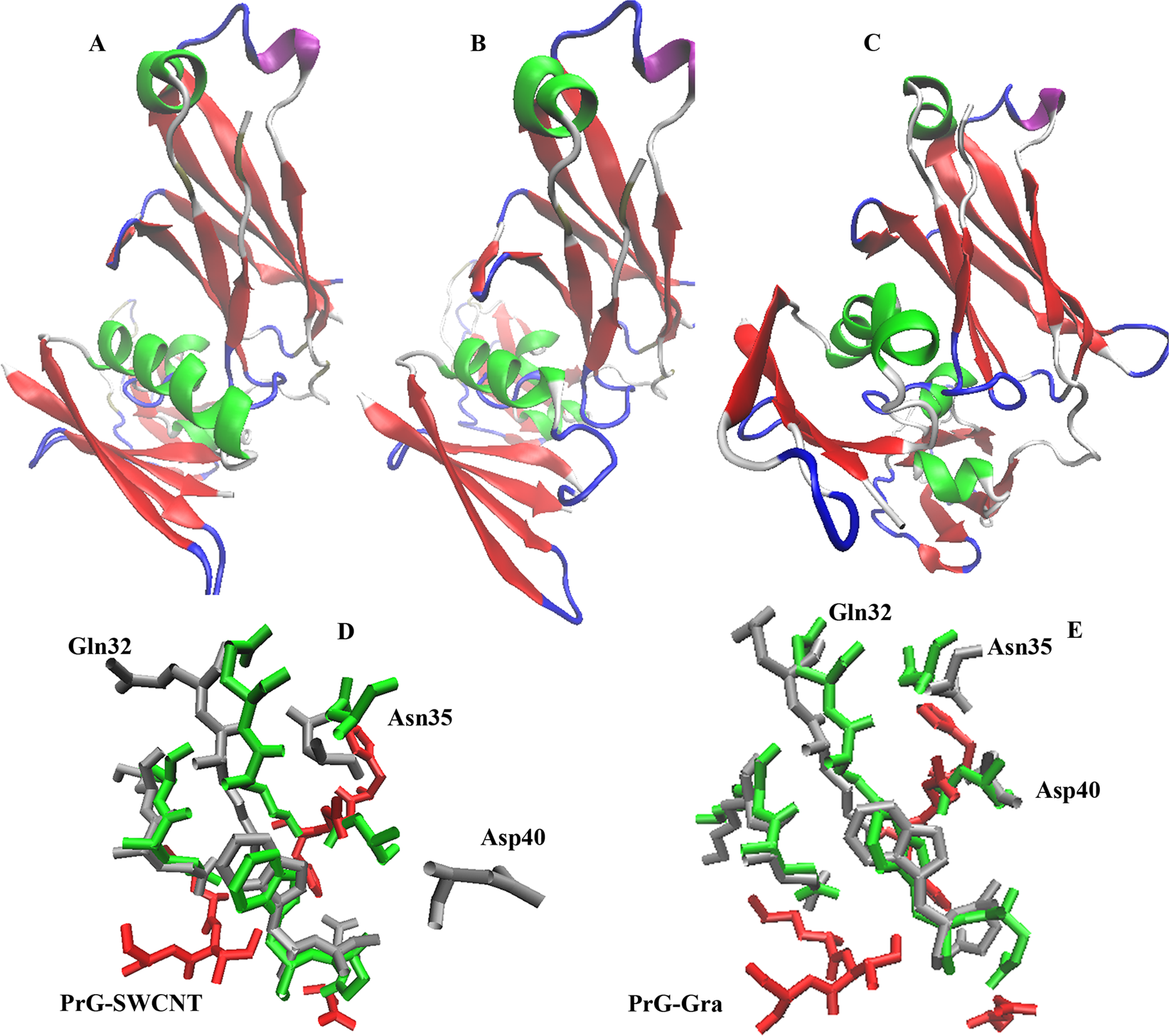

Final snapshots of Hex software. (A) The PrG alone. (B) The PrG-SWCNT and (C) The PrG-Gra. Amino acids displacements occurred in the FcR of the PrG while the PrG interacted with (D) SWCNT and (E) Gra. Silver = FcR amino acids for the PrG in the presence SWCNT or Gra, Green = FcR of the PrG alone, Red = amino acids in the IgG participated in interaction (Fc amino acids) with the FcR.
