Figure 2
From: mmSTORM: Multimodal localization based super-resolution microscopy

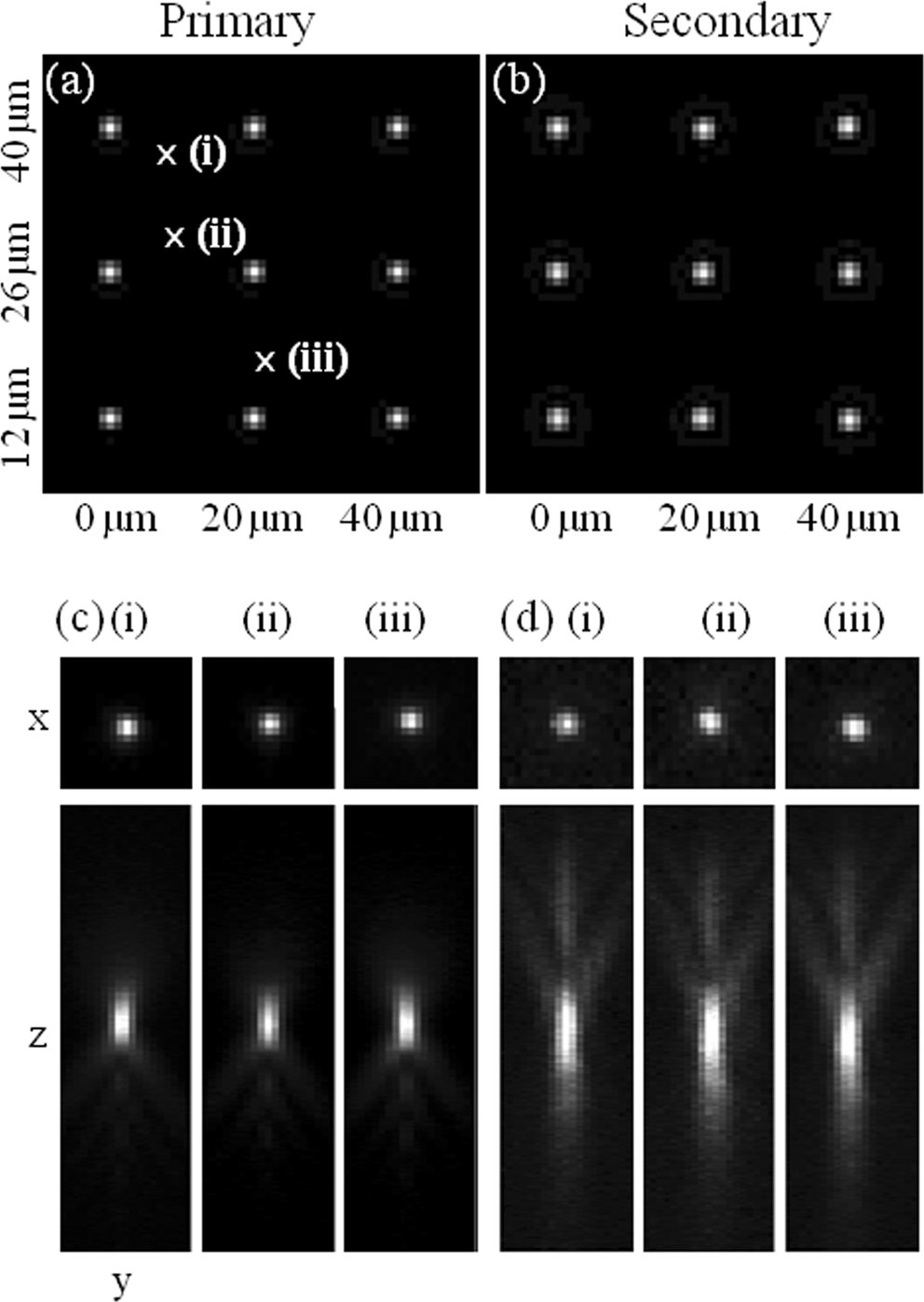

Simulated primary and secondary images of fluorescent molecules situated at lateral x (0 μm, 20 μm, 40 μm) and y (12 μm, 26 μm, 40 μm) off axis coordinates are depicted (a,b) respectively. Experimentally measured lateral (x, y) and axial (z, y) intensity distributions of the primary (c) and secondary (d) images of three fluorescent beads in the positions marked by x (a). The pixel size is 160 nm.
