Figure 6 | Scientific Reports

Figure 6

From: The ability to utilise ammonia as nitrogen source is cell type specific and intricately linked to GDH, AMPK and mTORC1

Figure 6

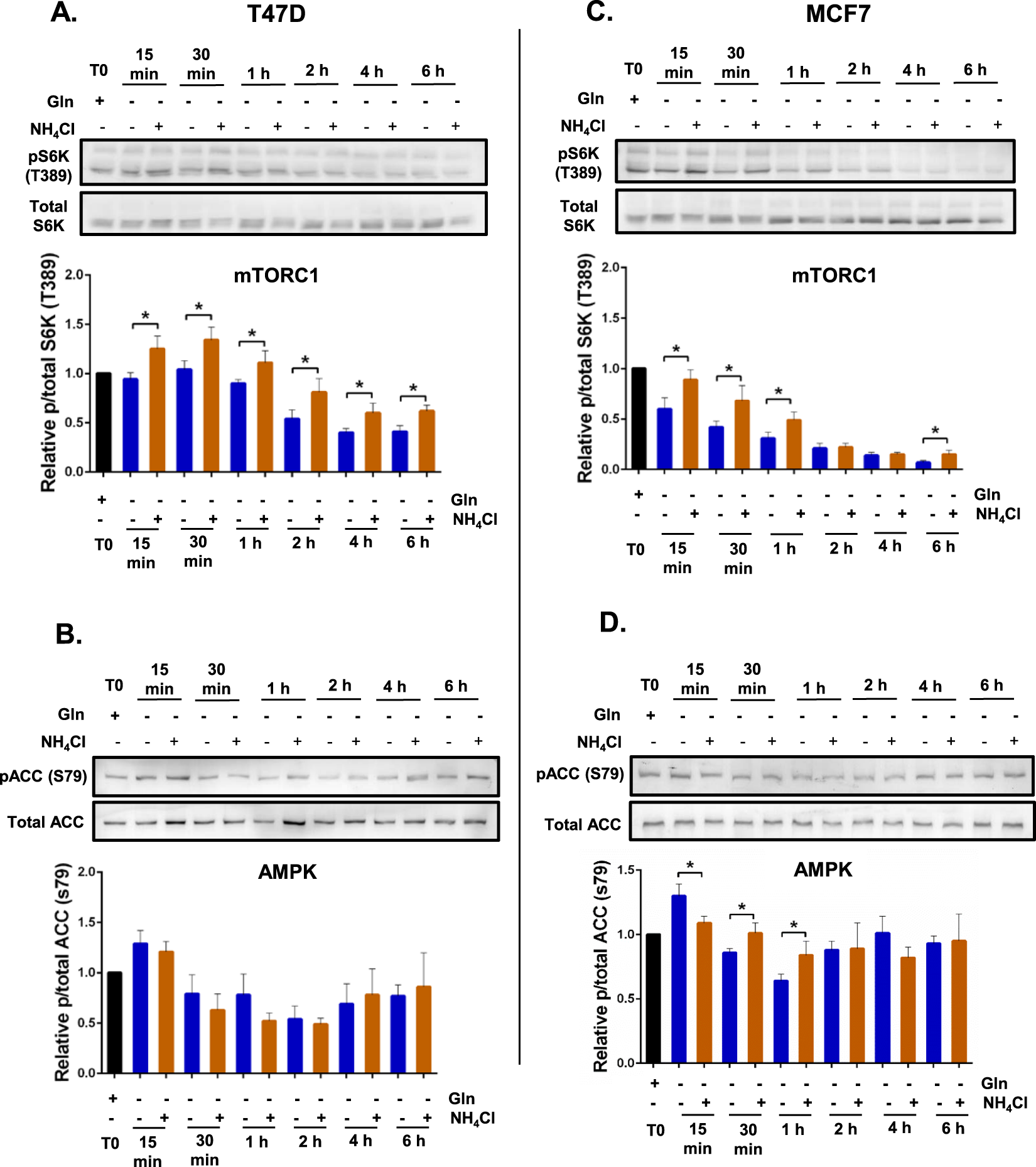

Acute glutamine depletion and ammonia lead to dynamic changes in mTORC1 and AMPK signalling in T47D and MCF7 cells. T47D and MCF7 cells were plated in complete media containing glutamine for 24 h. One culture was collected for western blotting 24 h later (T0). The remainder of the cultures were washed with DPBS and fresh glutamine-depleted media with or without 0.8 mM NH4Cl was added. Cultures were collected at different time points and protein was extracted for western blotting. Protein abundance of phosphorylated S6K (T389) relative to total S6K protein levels (A,C) and phosphorylated ACC (S79) relative to total ACC protein levels (B,D) at 15 min, 30 min, 1 h, 2 h, 4 h and 6 h post-incubation was quantified using western blot. *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001. Full length blots are presented in Supplementary information Fig. 4.
