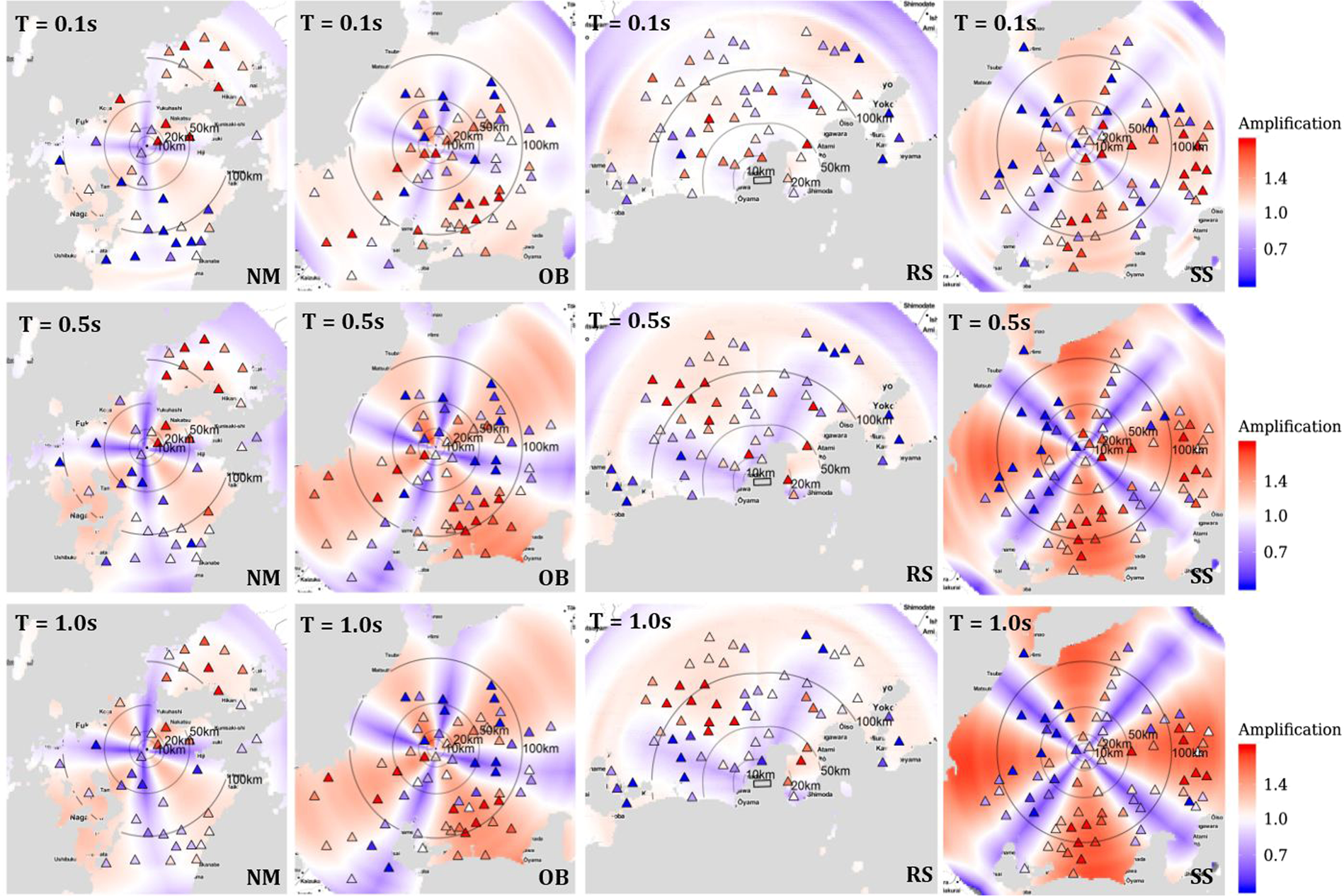

Figure 5
Period-, distance- and style-of-faulting dependent anisotropic ground-shaking amplification predictions for four events in Japan (NM: Normal, OB: Oblique, RS: Reverse, and SS: Strike-slip from left to right panels), for periods T = 0.1, 0.5 and 1 s (top-to-bottom panels). Each panel shows the R ≤ 200 km region (with 10, 20, 50,100 km contour lines) around the rupture trace, with color coding to reflect anisotropic increases (red)/decreases (blue) in ground-shaking with respect to the isotropic predictions, as a result of including the S-wave radiation pattern in empirical ground-shaking predictions. Overlying markers indicate the locations of recording sites, which are also color coded to reflect systematically higher (red) or lower (blue) than median isotropic ground-shaking model predictions. Wherever the background colors coincide with marker colors, the prediction model captures the observed anisotropic spatial variability of the ground-shaking reasonably well.
