From: X-ray structure of Fasciola hepatica Sigma class glutathione transferase 1 reveals a disulfide bond to support stability in gastro-intestinal environment

Figure 2

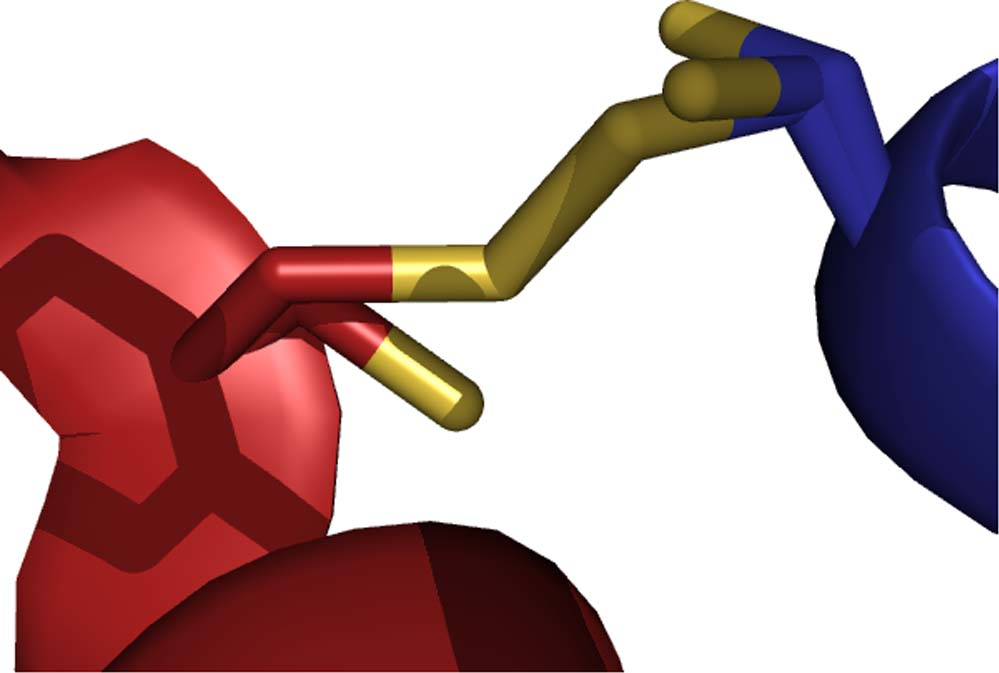

The interdomain disulfide bond shown as a link between the Sγ atoms (yellow) of the two cysteine residues, which has partial occupancy. Alternative conformations of the side chains of cysteine residues 26 and 196 are shown as stick models. Secondary structure elements and carbon atoms of the N-terminal domain are shown in blue and of the C-terminal domain in red.
