Figure 2

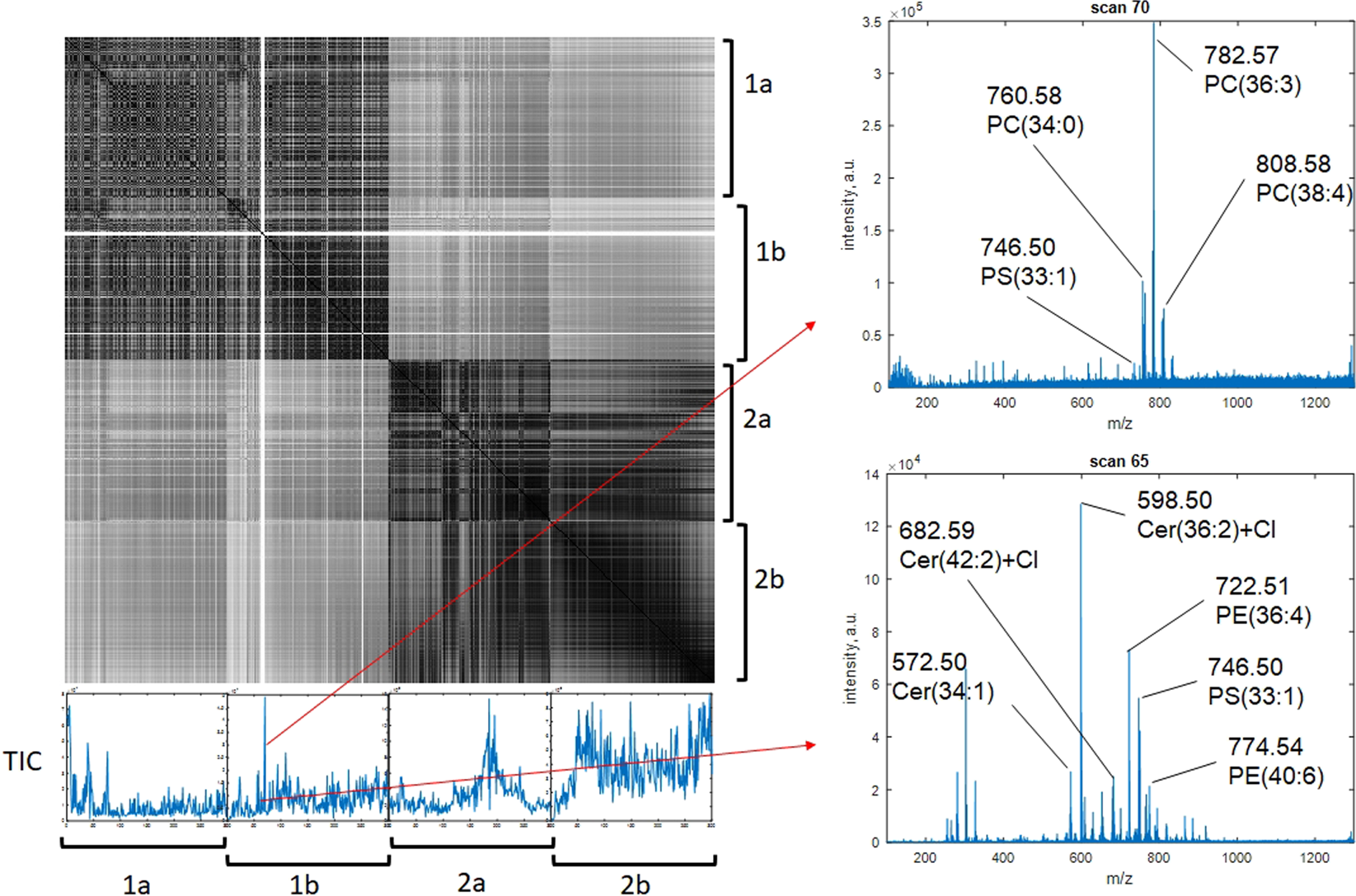

Correlation matrix based on the cosine measure without smoothing. Measurements 1a and 1b correspond to different fragments of one sample classified as a glioblastoma; Measurements 2a and 2b correspond to different fragments of one sample, classified as a meningioma. The total ion current is presented for each measurement, with examples of spectra from two different scans for one of the measurements.
