From: Flexible Printed Monolithic-Structured Solid-State Dye Sensitized Solar Cells on Woven Glass Fibre Textile for Wearable Energy Harvesting Applications

Figure 6

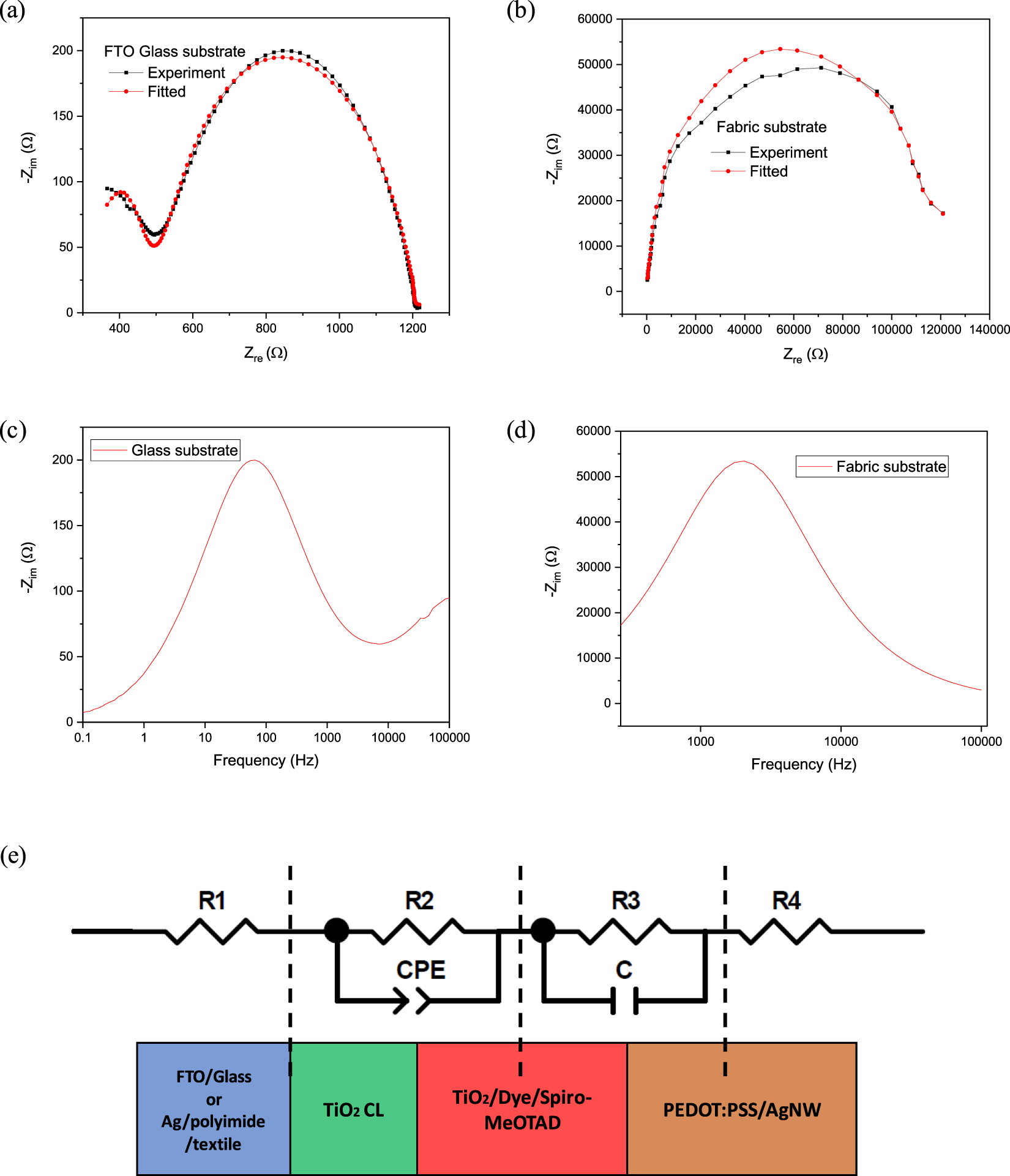

(a) Nyquist plot of ssDSSCs on FTO coated glass substrates. (b) Nyquist plot of textile ssDSSCs with screen printed polyimide interface layer. (c) Bode plot of ssDSSCs on FTO coated glass slide. (d) Bode plot of textile ssDSSCs with screen printed polyimide interface layer. (e) Schematic diagram of ssDSSCs structure that can be simulated using resistor (R), capacitor (C) and constant phase element (CPE) for glass and fabric (ignoring R3) based device.
