Figure 2
From: North Atlantic Ocean Circulation and Decadal Sea Level Change During the Altimetry Era

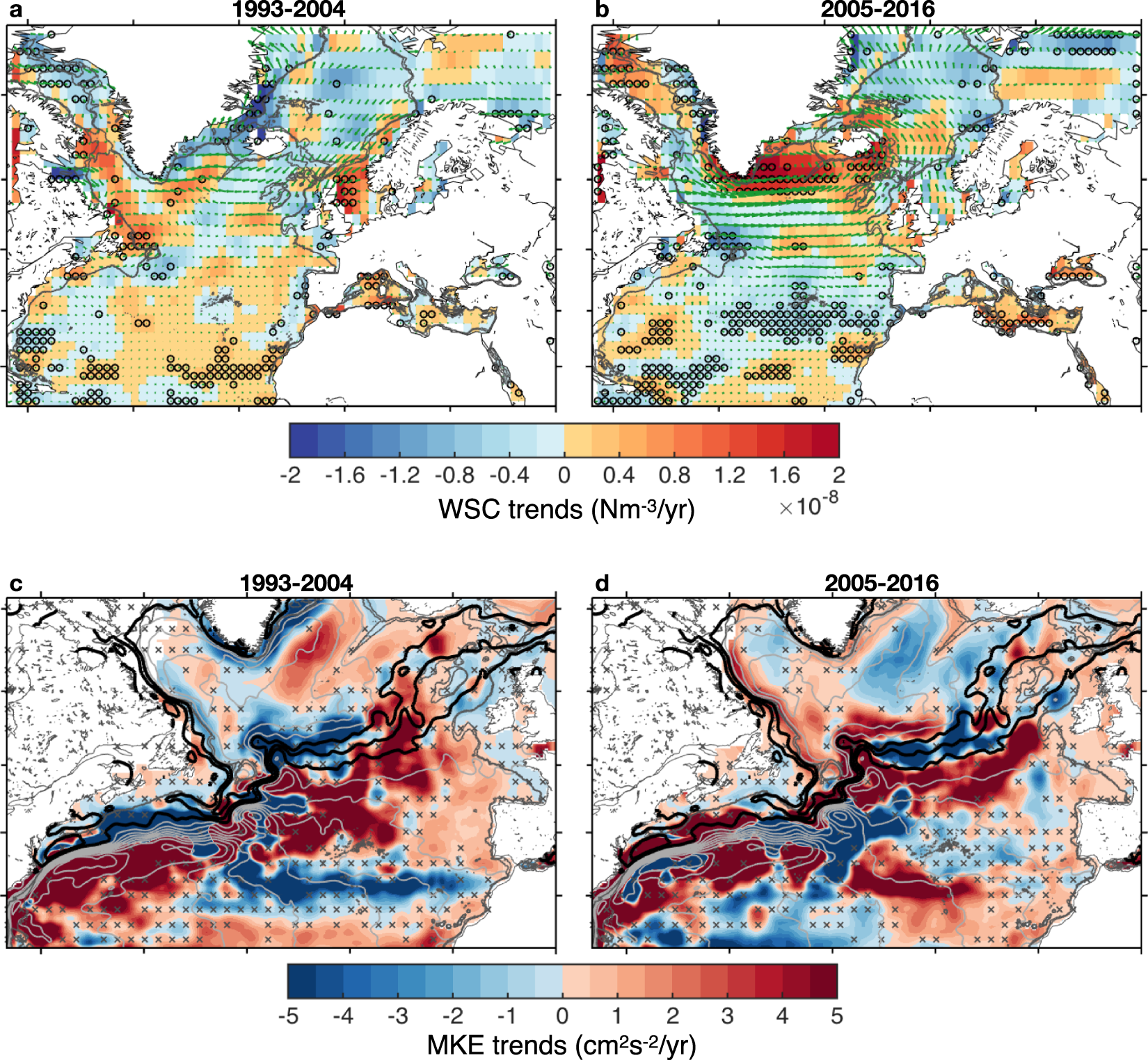

Atmospheric-driven ocean changes. Trends of wind-stress curl (WSC) calculated using NCEP/NCAR reanalysis for (a) the 1993–2004 WP and (b) the 2005–2016 CP. The vectors in the upper panels represent the wind-stress trends. The circles in the upper panels indicate the regions that are significant at the 95% confidence level80. Trends of mean kinetic energy (MKE) calculated using altimetry for (c) the 1993–2004 WP and (d) the 2005–2016 CP. The stipplings indicate the non-significant regions at the 95% confidence level. The light grey contours depict the time-invariant mean dynamic topography (CNES-CLS2013 MDT) that ranges from 0.8 m to −0.8 m with a spacing of 0.1 m. Three of these contours (−0.1, −0.2 and −0.3 m) are highlighted in black as they trace the different branches of the NAC61 that continue into the northeast Atlantic. The gray contours in all panels depict the 500 and 1000-m isobaths. The figure was produced using the software Matlab R2014b, (https://www.mathworks.com).
