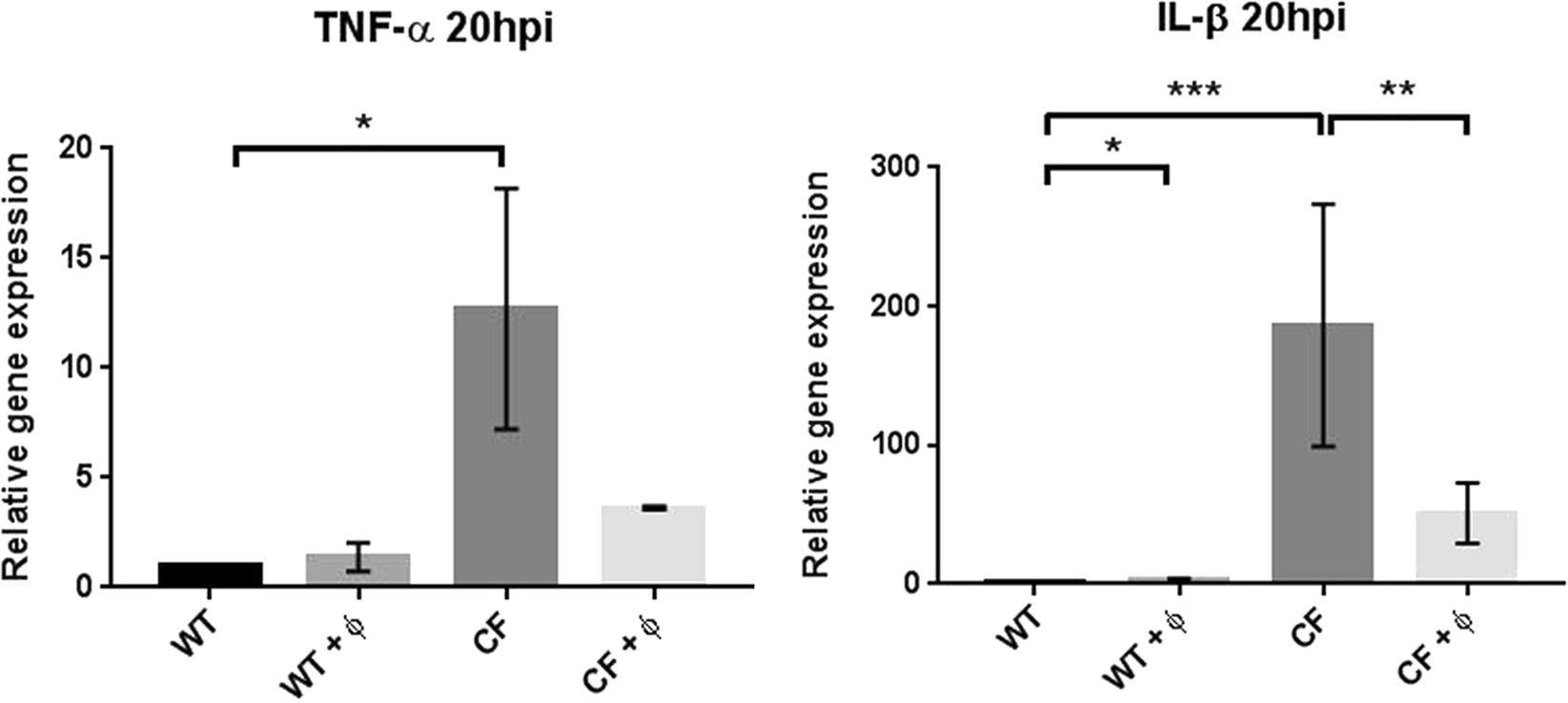

Figure 4
From: Phage therapy against Pseudomonas aeruginosa infections in a cystic fibrosis zebrafish model
TNF-α and IL-β expression in phage injected WT and CF embryos. Expression levels of the TNF-α and IL-β genes measured by RT-qPCR at 20 hpi in WT, WT + ϕ, CF and CF + ϕ embryos injected at 48 hpf. The mean and SD of four experiments are reported. Statistical significance was assessed by ANOVA followed by Duncan’s test: for TNF-α, (WT) vs (WT + ϕ) p = 0.96 n.s.; (WT) vs (CF) p = 0.022; (CF) vs (CF + ϕ) p = 0.23 n.s. For IL-β, (WT) vs (WT + ϕ) p = 0.020; (WT) vs (CF) p = 0.00007; (CF) vs (CF + ϕ) p = 0.009.
