From: Blood-based analysis of type-2 diabetes mellitus susceptibility genes identifies specific transcript variants with deregulated expression and association with disease risk

Figure 3

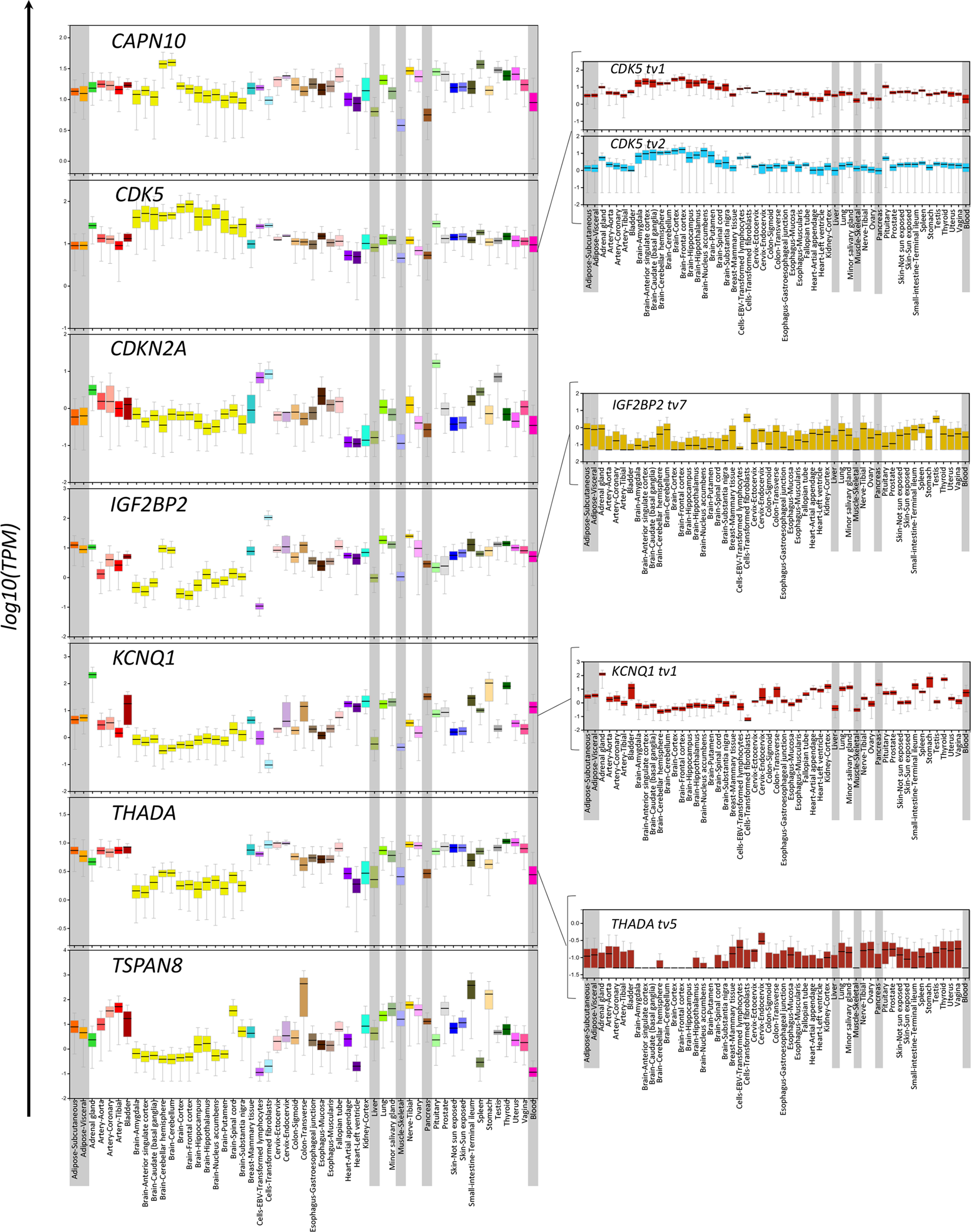

Bar diagrams obtained from the GTEx portal (5/3/2018) depicting the expression pattern of the differentially expressed genes and transcript variants in various human tissues and cells. mRNA levels are expressed as transcripts per million (TPM). Boxes represent the median (range) of the normalized values. Boxes corresponding to whole blood or T2D-affected tissues are grey-colored highlighted.
