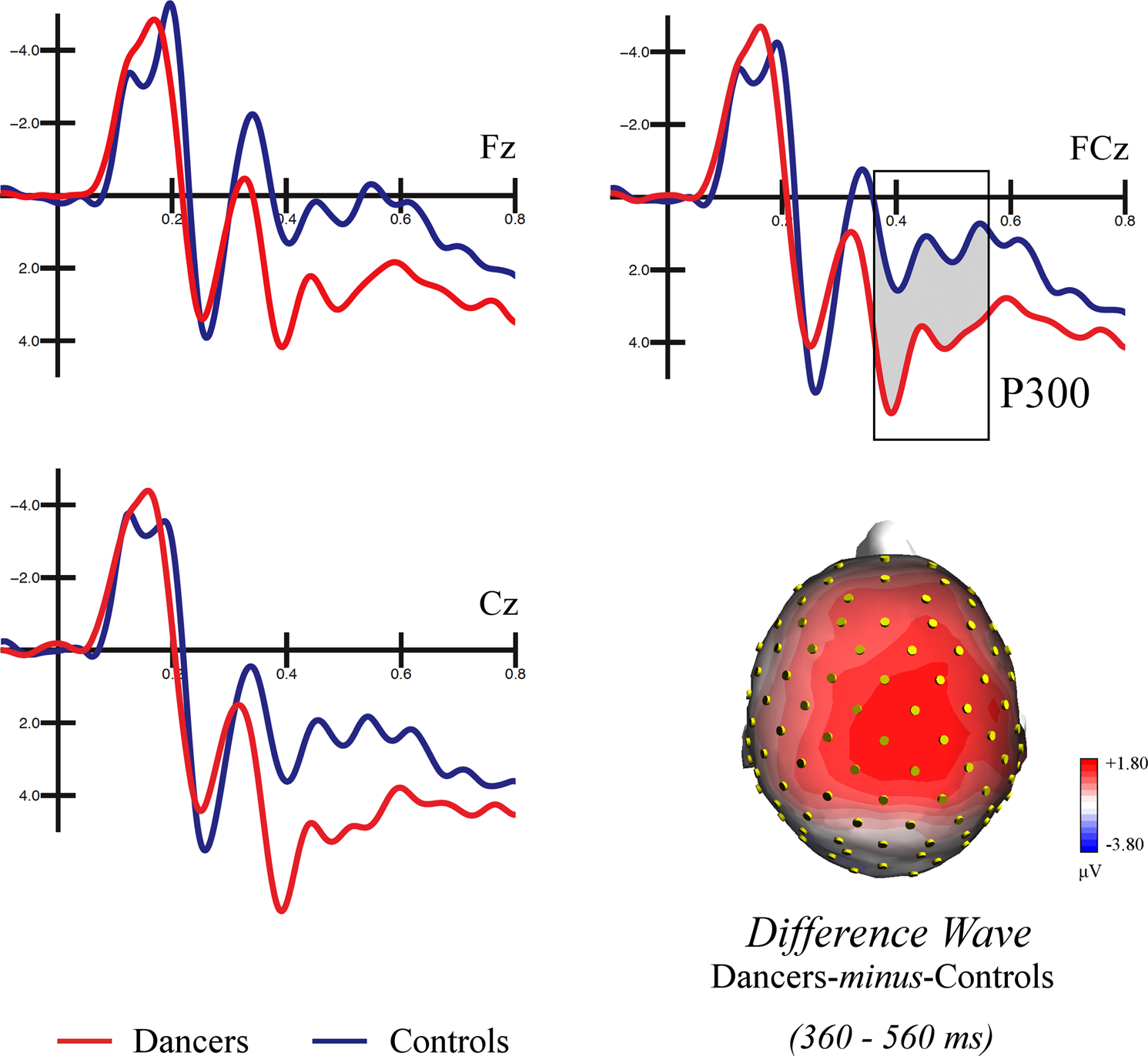

Figure 8
From: Bilateral engagement of the occipito-temporal cortex in response to dance kinematics in experts
Grand average waveforms recorded at fronto-central sites and topographic map of voltage distribution over the scalp. Grand average waveforms (ERPs) recorded over fronto-central sites in dancers (in red) and controls (in blue). An expertise-related modulation of the P300 component is visible over the midline, being larger in the dancers than controls. The topographic map of the scalp voltage distribution computed on the difference wave dancers-minus-controls in the P300 time window (360–560 ms) is shown in the bottom-right part of the figure. The positive values of voltage are shown in shades of red.
