Figure 2
From: Belief of agency changes dynamics in sensorimotor networks

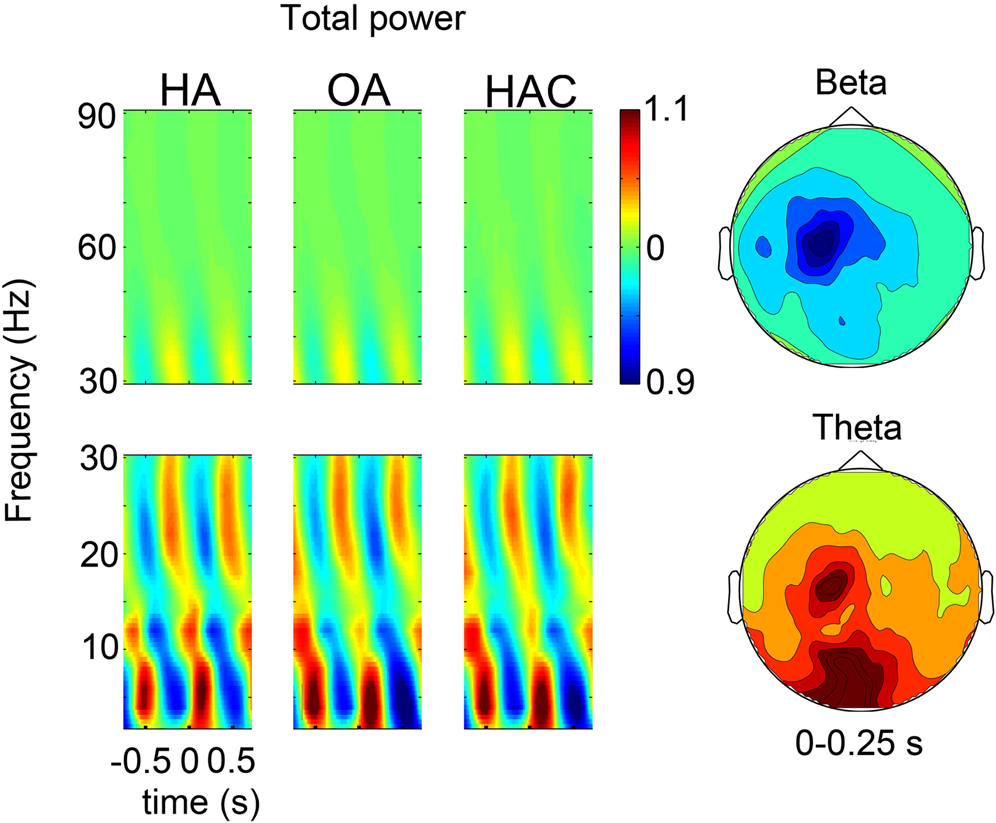

Total power at sensor level. The figure shows the time-frequency representation of normalized total power, during tapping, at ~1.5 Hz, time-locked to the current tap at 0 s. Left: Averaged power across sensors. The tap and time-locked flash at 0 s cause a transient decrease in beta band activity and an increase in the theta band. Right: The scalp distribution shows peak modulations across left motor cortex for beta band activity and over occipital sites for the theta band, averaged across conditions.
