Figure 6
From: Encoding information into autonomously bursting neural network with pairs of time-delayed pulses

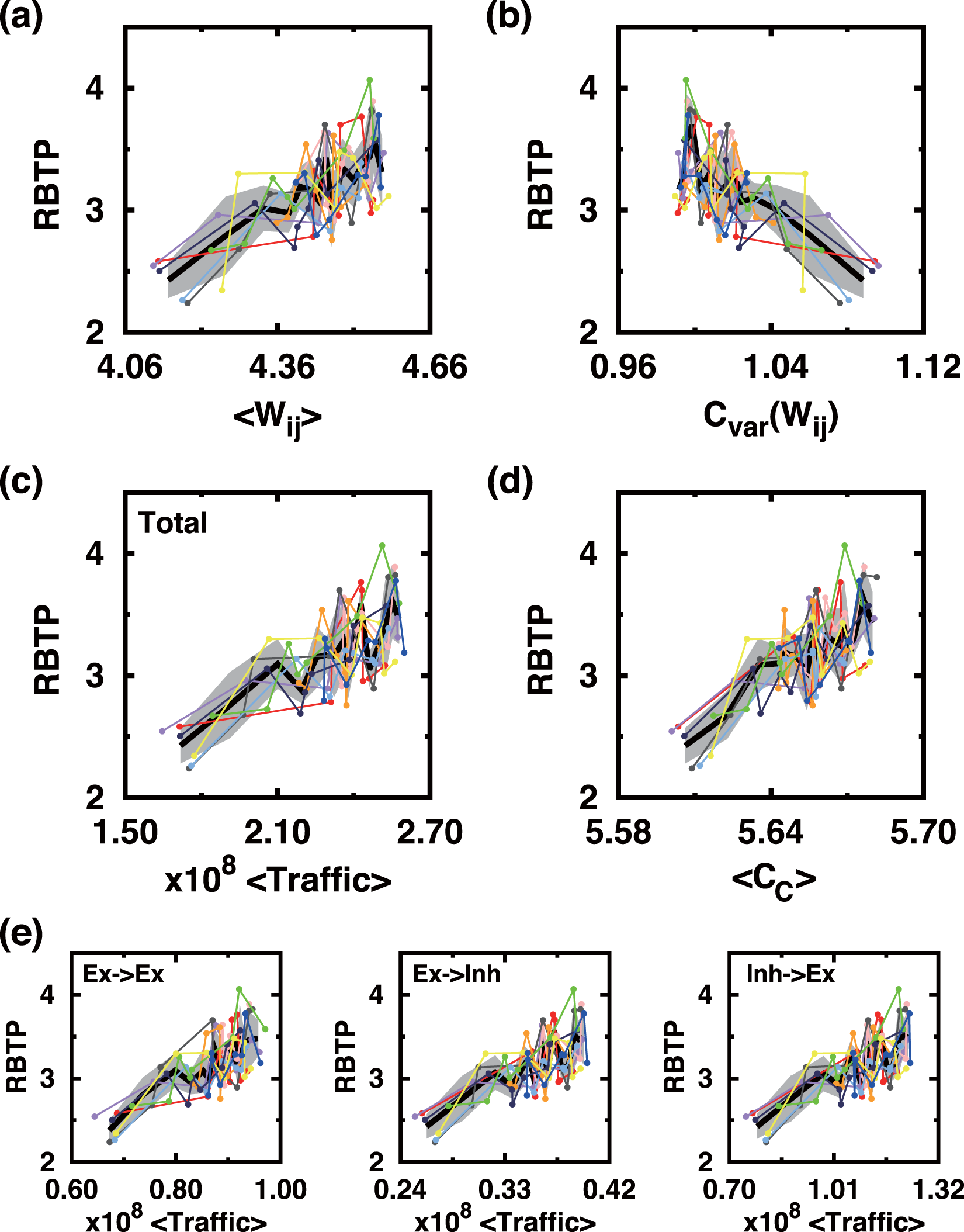

RBTP versus other measures characterizing the network connectivity. (a) The mean of synaptic weights Wij, (b) the covariance of synaptic weights Wij, (c) the mean of synaptic transmissions (〈Traffic〉), and (e) the mean of closeness centralities (Cc). (d) RBTP vs 〈Traffic〉 for three different sub-types of synaptic connections. Ten different colors represent 10 different initial states and eight different dots along each line correspond to 8 different Δt values (equally spaced from 50 to 120 ms). For the exact definition of synaptic traffic and closeness centrality, see the text. The thick black lines connect local averages (over 5 neighboring data points) and the background gray shades represents the corresponding standard deviation.
