Figure 2
From: Comparison of different smartphone cameras to evaluate conjunctival hyperaemia in normal subjects

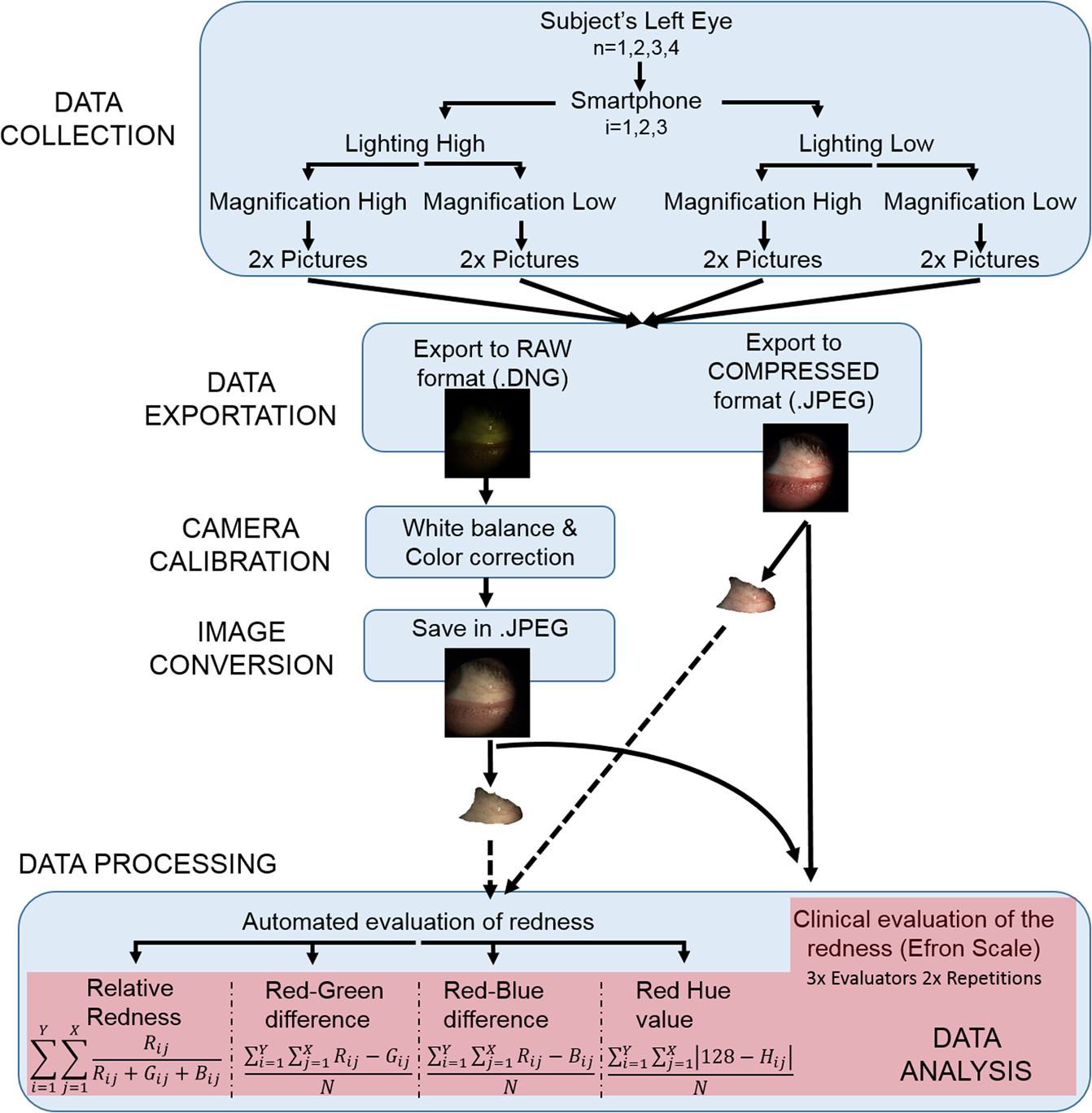

Processing steps conducted for each smartphone and eye. X and Y are the pixel coordinates in the horizontal and vertical directions. R, G and B refer to the Red, Green and Blue channels of a camera sensor. N is the total number of pixels. H is the Hue channel of an image in the HSL color space.
