Figure 4

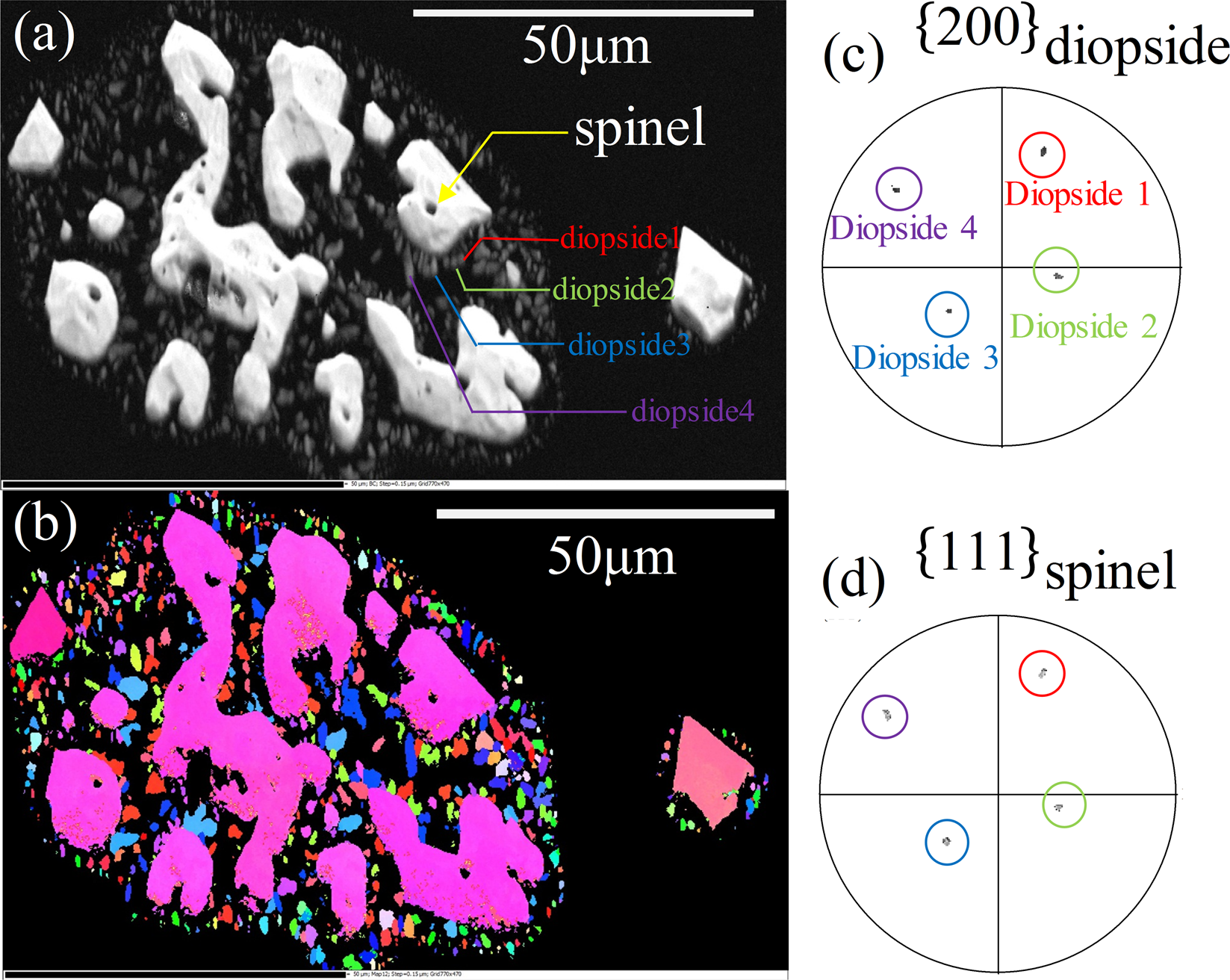

EBSD diagrams of the selected zones. (a) SEM image, (b) Grain-orientated mapping of selected zones, (c) Pole figure of the close-packed surface of diopside, (d) Pole figure of the close-packed surface of spinel.
