Figure 3
From: micro-RNAs dependent regulation of DNMT and HIF1α gene expression in thrombotic disorders

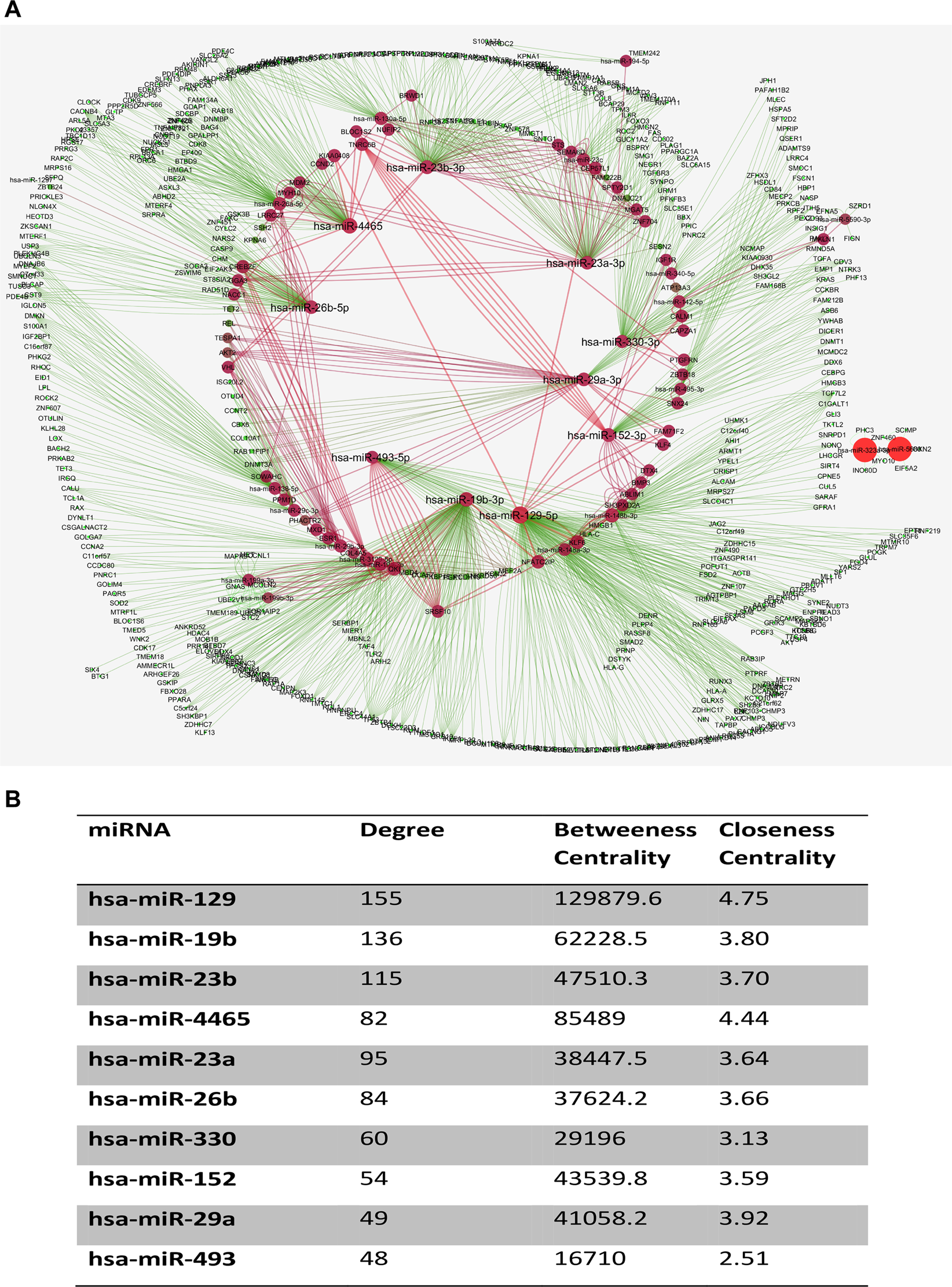

Hub shared miRNA and candidate prioritization. (A) Interaction network between shared miRNAs and target genes to perform hub miRNA analysis based on complex network centrality measures. The source nodes here are the miRNAs and target nodes are coding mRNAs (target genes), while the edges represent the interaction between them. The size and color of the nodes in network is relative to the betweenness centrality. The top hub miRNAs in the network are highlighted with bigger font size. (B) List of top hub miRNA selected from in silico analysis of miRNAs-mRNAs network based on scoring algorithm.
