From: Anterior cingulate GABA and glutamate concentrations are associated with resting-state network connectivity

Figure 3

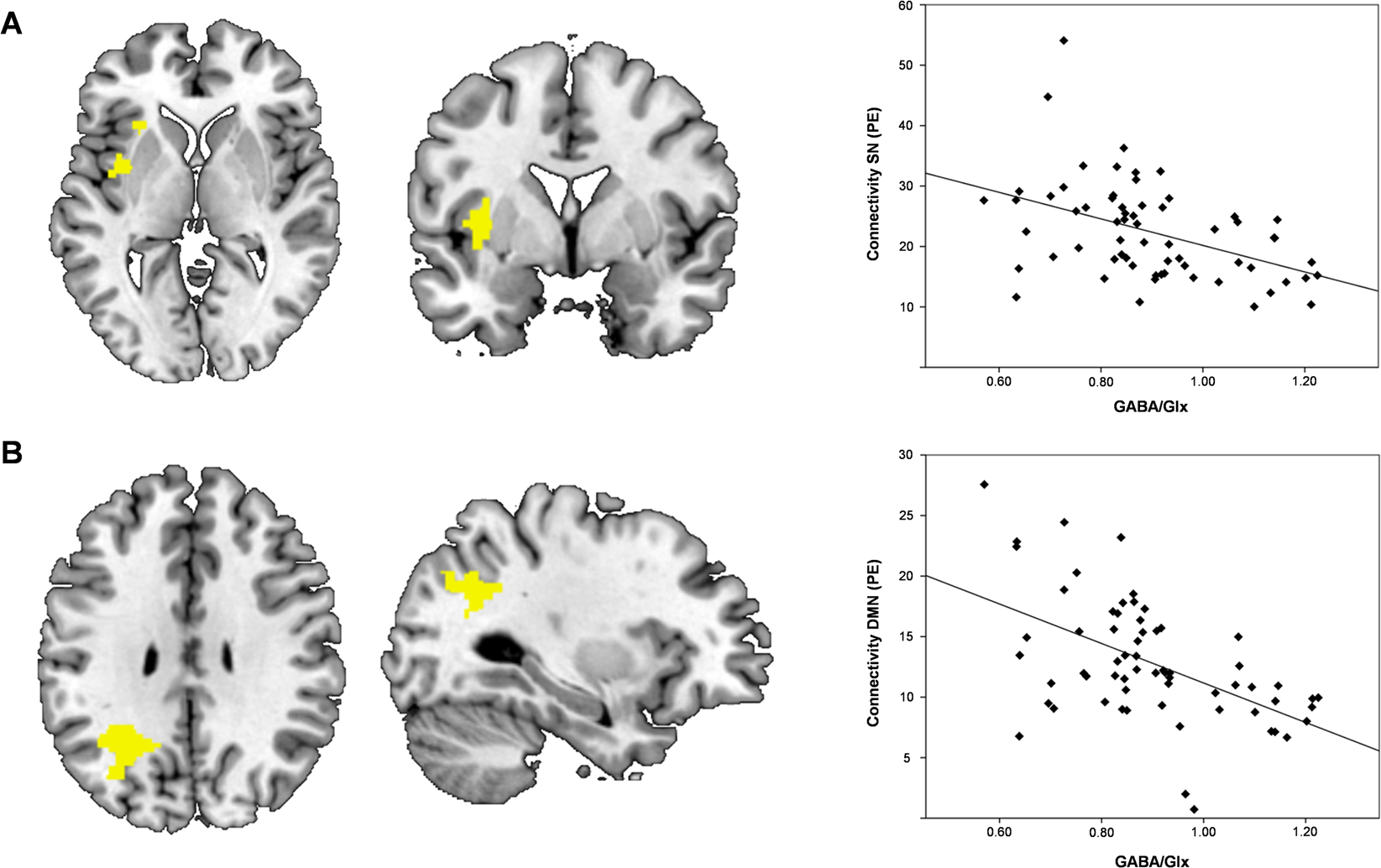

Correlations of dACC GABA/Glx ratios and the SN and DMN. (A) Transverse and sagittal views of significant GABA/Glx associated resting-state connectivity (p < 0.05) in the left insula of the SN. The scatter plot depicts the association between GABA/Cr levels and mean intensity (parameter estimates (PE)) of resting-state connectivity within the SN. (B) Transverse and sagittal views of significant GABA/Glx ratio associated functional connectivity (p < 0.05) in the lateral occipital cortex of the DMN. The scatter plot shows the correlation between dACC GABA/Cr and resting-state connectivity within the DMN.
