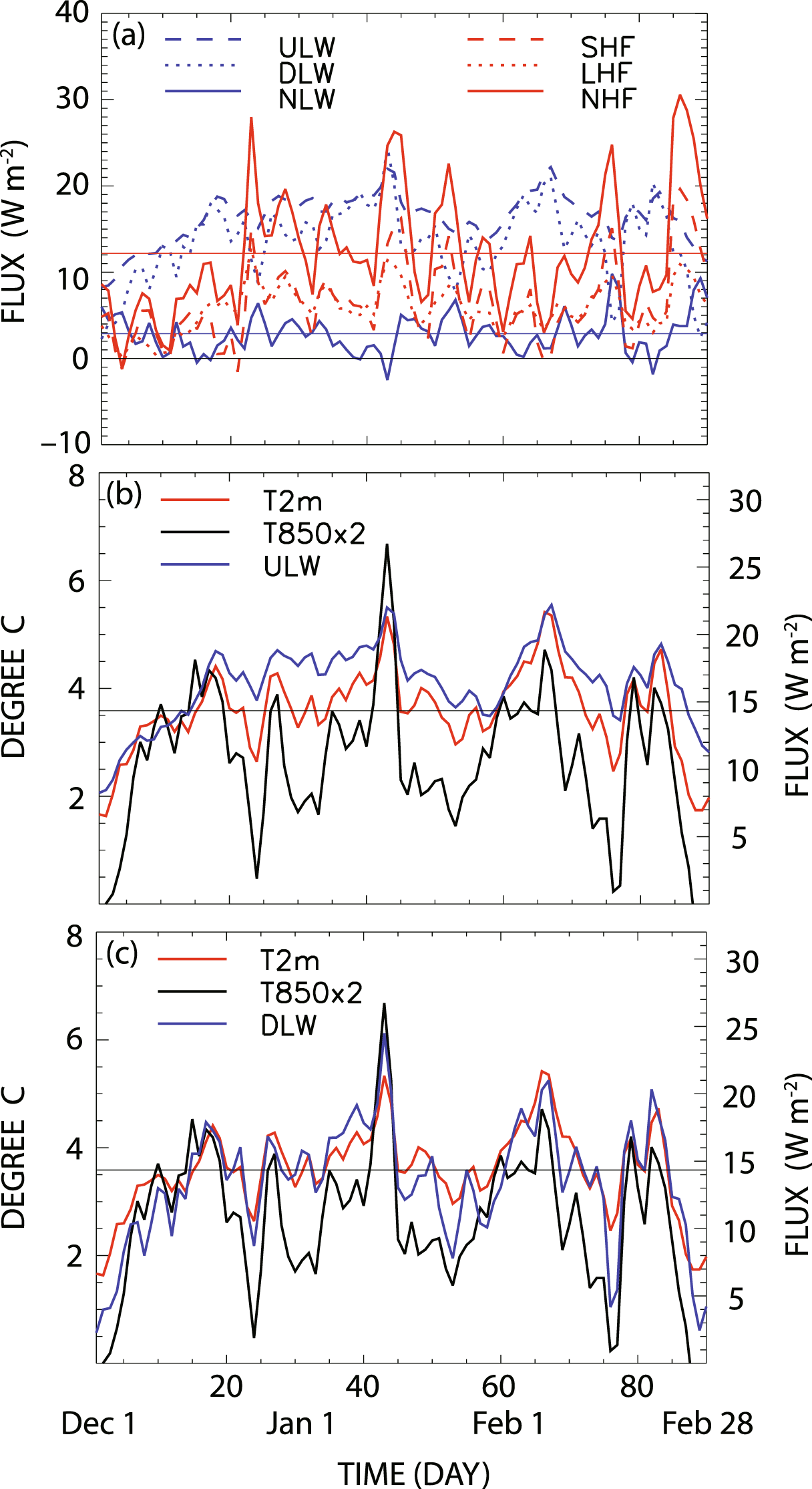

Figure 4
From: Vertical Feedback Mechanism of Winter Arctic Amplification and Sea Ice Loss
Daily patterns of variability over the region of sea ice loss (21°–79.5°E × 75°–79.5°N): (a) upward longwave radiation (blue dashed), downward longwave radiation (blue dotted), net longwave radiation (blue solid) with its mean value (blue straight line), sensible heat flux (red dashed), latent heat flux (red dotted), and turbulent heat flux (red solid) with its mean value (red straight line), (b) 2 m air temperature (red), 850 hPa air temperature × 2 (black), and upward longwave radiation (blue), and (c) same as (b) except for the regressed downward longwave radiation (blue). The straight lines in (b) and (c) represent the winter mean value of anomalous 2 m air temperature. Correlation of upward and downward longwave radiation with 2 m air temperature is respectively 0.88 and 0.91, whereas with 850 hPa air temperature is 0.66 and 0.85. Winter days are counted from December 1.
