Figure 2 | Scientific Reports

Figure 2

From: Intraperitoneal delivery of a novel drug‐like compound improves disease severity in severe and intermediate mouse models of Spinal Muscular Atrophy

Figure 2

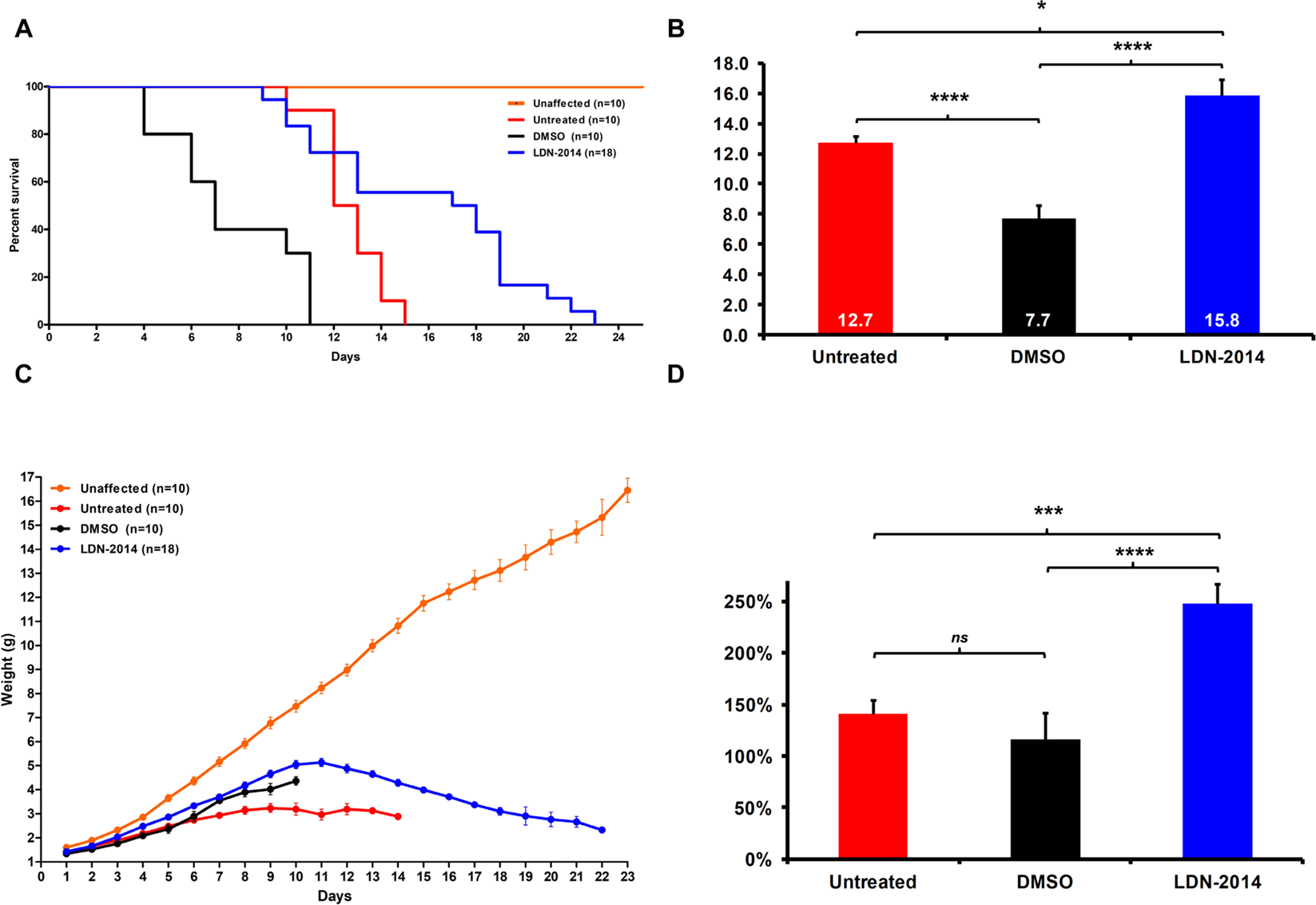

In vivo efficacy of LDN-2014 in SMN∆7 mice. LDN-2014 (20 mg/kg) or vehicle (DMSO) injections were administered by IP daily and bodyweight was recorded. (A) Kaplan-Meier survival curve of untreated SMA mice (n = 10) in comparison to DMSO (n = 10) and LDN-2014 (n = 19) treated mice. (B) Comparison of average survival time by Log-rank Mantel-Cox test. (C) Body weight curve in grams for DMSO (n = 10), LDN-2014 (n = 19), and untreated (n = 10) SMN∆7 mice. (D) Body weight expressed as percentage weight gain from “birth-to-peak”, from all cohorts. Statistical significance is represented by “*” where p ≤ 0.05; “**”p ≤ 0.01; “***”p ≤ 0.001; “****”p ≤ 0.001; “ns”p > 0.05. Data expressed as S.E.M.
