Figure 3
From: Functional random forest with applications in dose-response predictions

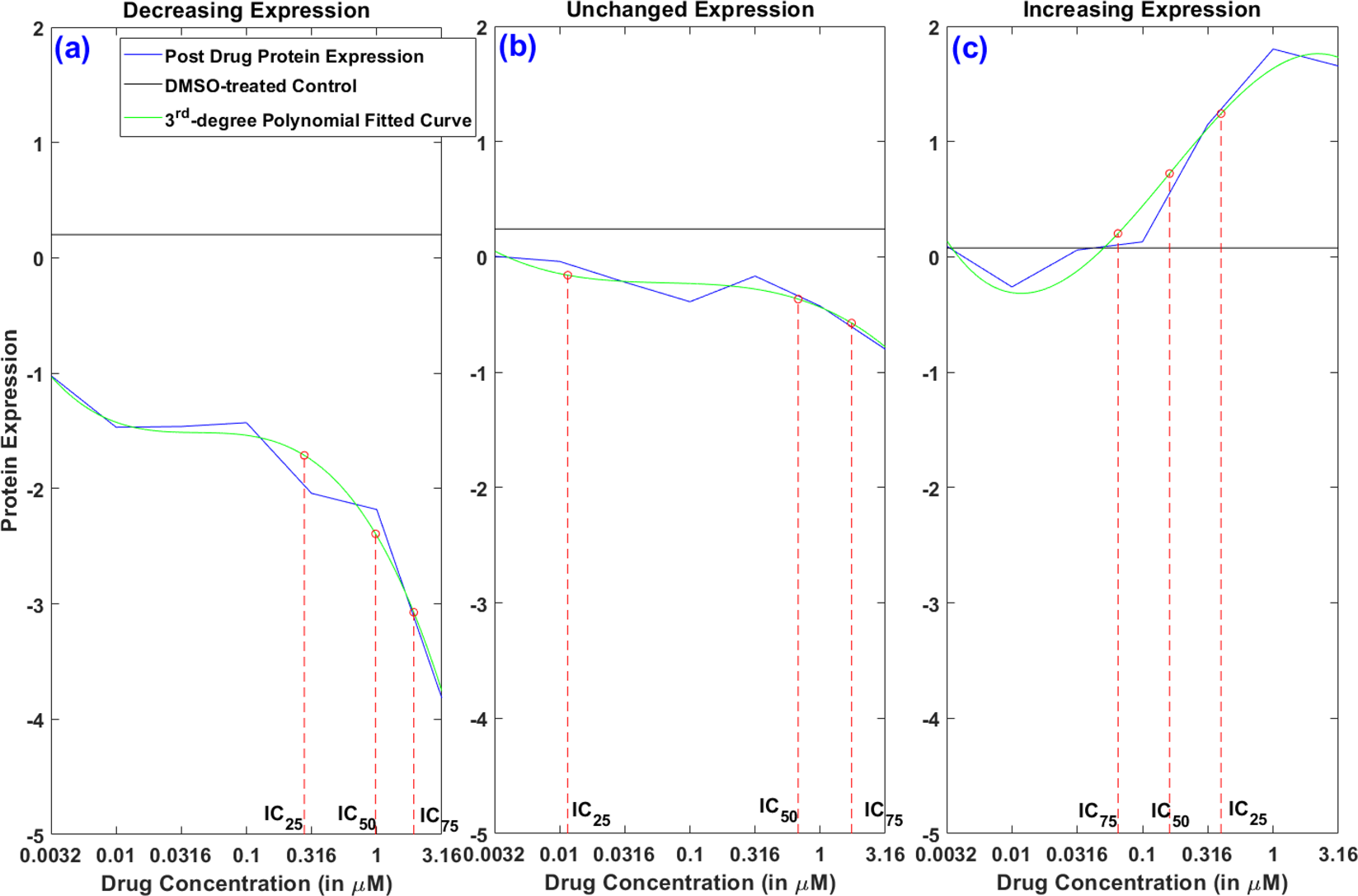

Illustration of obtaining different IC values using observed protein expression points and the corresponding 3rd degree polynomial fitted curve overlaid after AZ-628 administration in cell line C32 for (a) protein p-S6 with a decreasing trend, (b) protein p-mTOR with minor changes, and (c) protein cPARP with an increasing trend.
