Figure 4
From: Unusual Roles of Discharge, Slope and SOC in DOC Transport in Small Mountainous Rivers, Taiwan

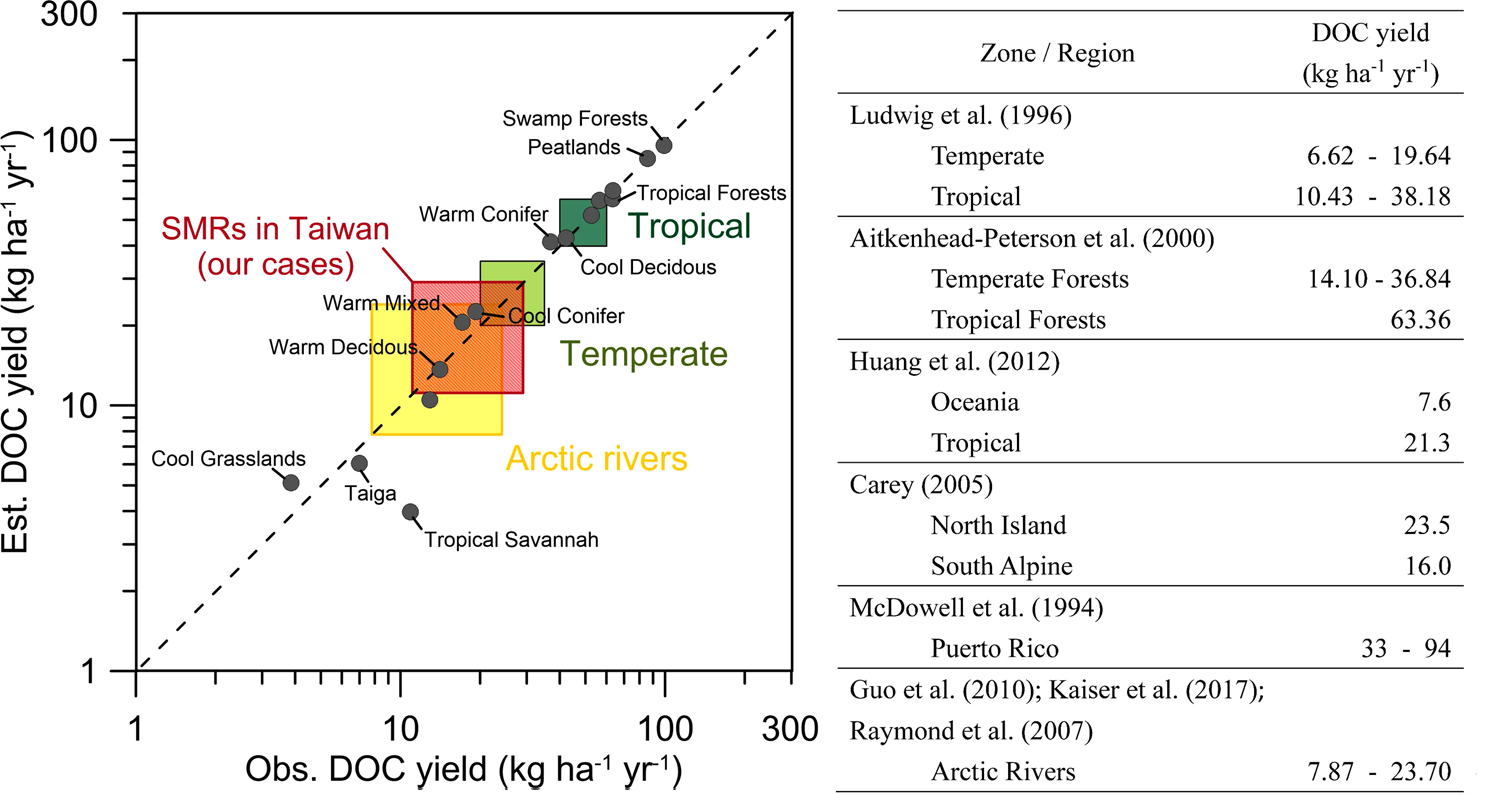

The DOC yield in different biomes and regions from the literature and Taiwan SMRs (red box). The gray dots derived from Aitkenhead-Peterson and McDowell13 show the observation and estimation of DOC yields in 15 biome types on a global scale. The light and dark green box indicate the approximation of DOC yields in temperate and tropical forests (referring to section 5). The yellow box shows the DOC yields in Arctic rivers.
