Figure 2 | Scientific Reports

Figure 2

From: Tumorigenicity assay essential for facilitating safety studies of hiPSC-derived cardiomyocytes for clinical application

Figure 2

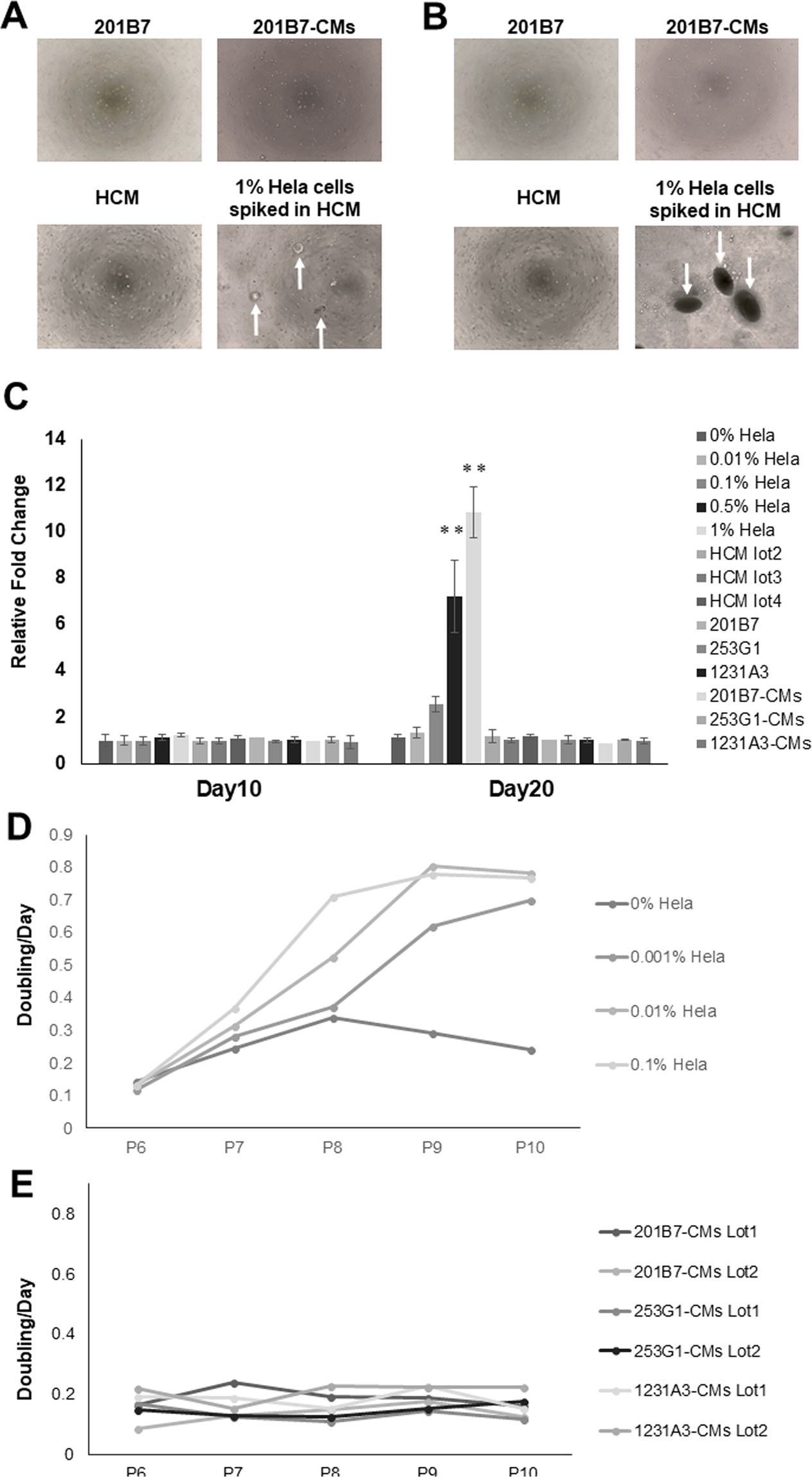

Detection of malignantly transformed cells in vitro. (A–C) Soft agar colony formation assay. Phase contrast micrographs of 201B7 cells, 201B7-CMs, human primary cardiomyocytes (HCM), and HeLa cells spiked into HCM (1%) cultured in soft agar medium for (A) 10 days and (B) 20 days. Arrows indicate colonies. (C) Quantitative analysis of fluorescence reflecting colony formation in hiPSCs, hiPSC-CMs, HCM Lot2~4, and HeLa cells spiked into HCM Lot1. Experiments were performed in triplicate. Each bar represents mean ± SD. **P < 0.01 vs. the 0% control. (D,E) Analysis of hiPSCs, hiPSCs-CMs, and HeLa cell growth and growth curves of hMSC contaminated with HeLa cells (D) and hiPSC-CMs (E).
