From: The potential role of temperate Japanese regions as refugia for the coral Acropora hyacinthus in the face of climate change

Figure 6

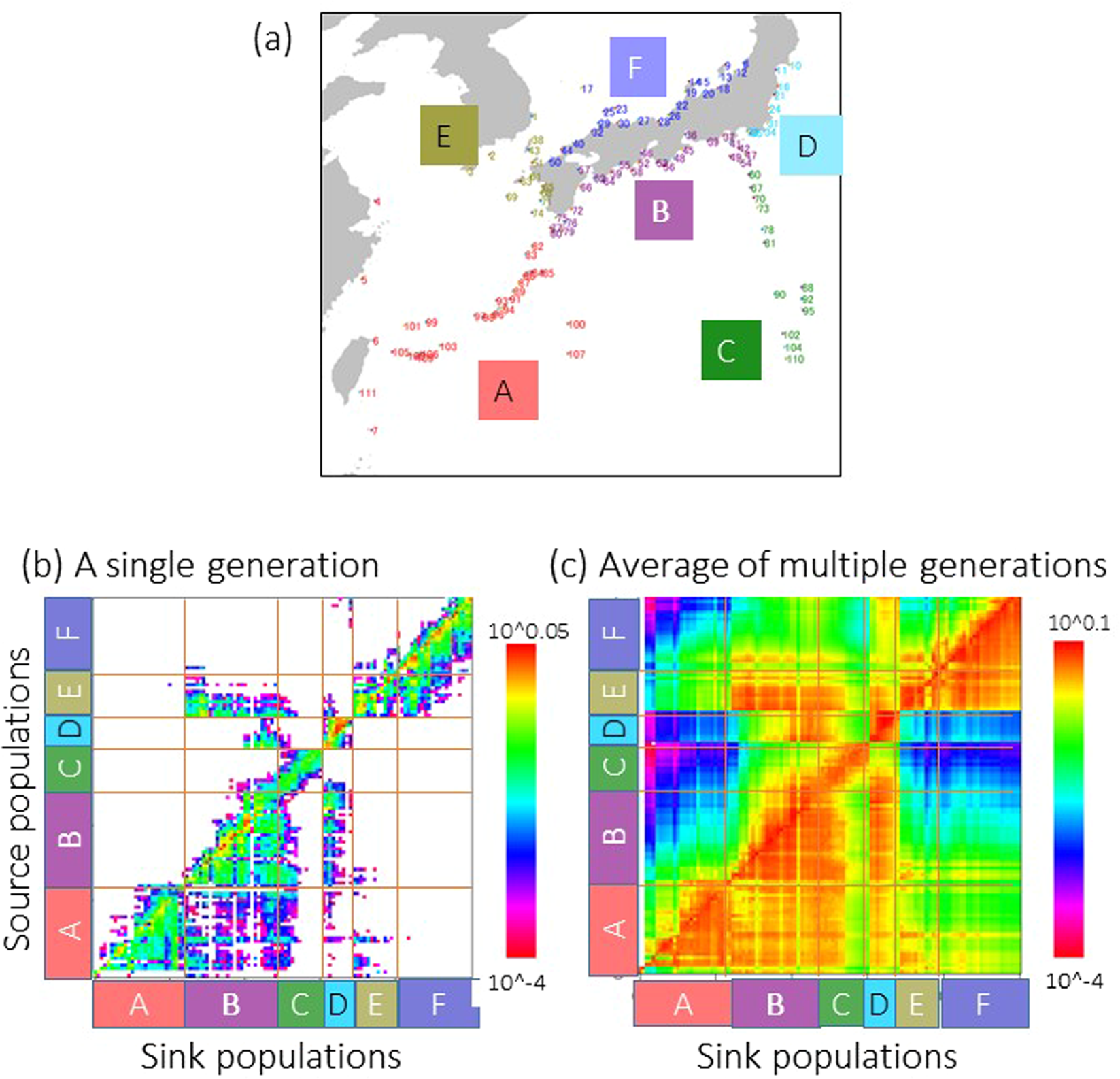

(a) Sites of simulated larvae release. The region codes A~F correspond to A~F in (b, c) and (b) connectivity matrix based on the calculation of 23 years of larval dispersal simulations. (c) Connectivity matrix after iterating dispersal over 1000 generations. The colour contours on the right indicate the probability of a larva arriving at a sink site from a source site.
