Figure 5
From: Magnetic particle mapping using magnetoelectric sensors as an imaging modality

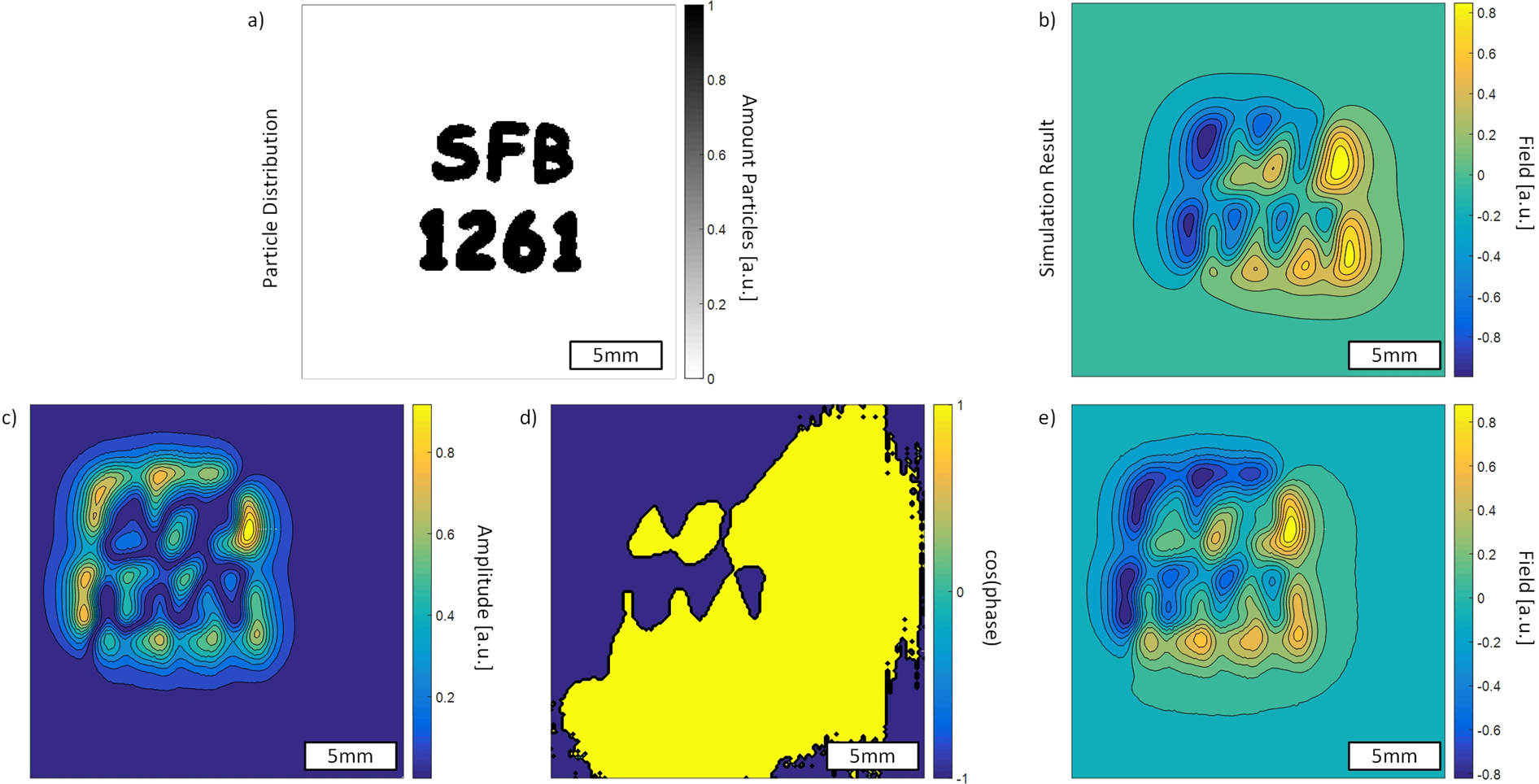

Measurement of a reference sample with the labeling ‘SFB 1261’, the number of our Collaborative Research Center from which this work was funded (see below). (a) The approximate reference sample, (b) calculated resultant magnetic field from the given distribution, (c) measured spatial amplitude, (d) measured phase, (e) phase and amplitude measurements combined.
