From: Monitoring of the field application of Metarhizium anisopliae in Brazil revealed high molecular diversity of Metarhizium spp in insects, soil and sugarcane roots

Figure 2

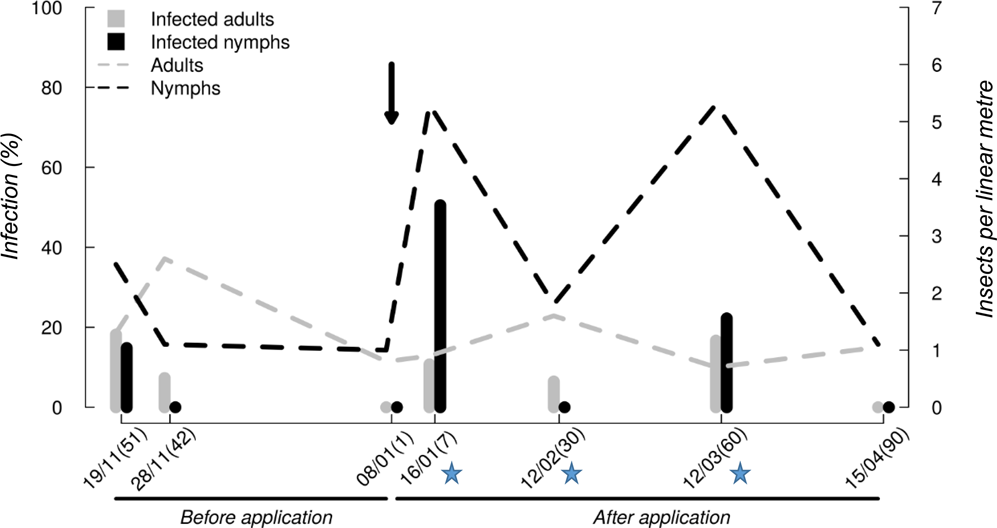

Percentage of insect infection (left y-axis) in sugarcane fields on three dates before and four dates after ESALQ1604 application, and the number of insects (right y axis) recorded by sample spot (linear meter). Percentage of fungus infection in adults and nymphs (bars) and the average of insects collected by sample point per date (dashed rows). The x-axis shows the sampling date and the days before or after the application of the fungus (Date (days before or after application)). Blue stars represent the dates in which ESALQ1604 was recovered from spittlebugs. The arrow represents the moment of application of the fungus ESALQ1604.
