Figure 4

From: The Th17/Treg Cytokine Imbalance in Chronic Obstructive Pulmonary Disease Exacerbation in an Animal Model of Cigarette Smoke Exposure and Lipopolysaccharide Challenge Association

Figure 4

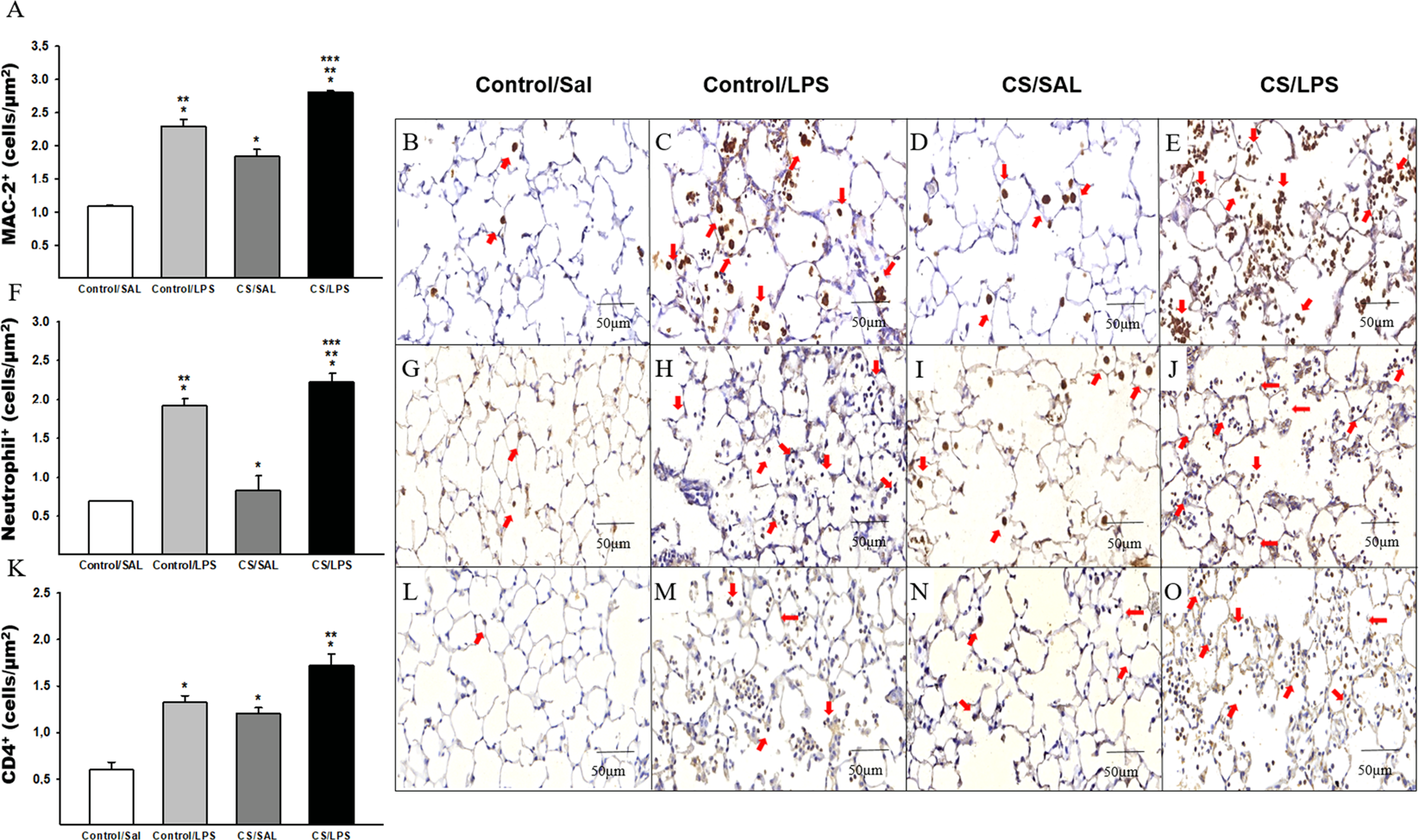

The density of positive cells for MAC-2, neutrophils and CD4+ in experimental groups. (A) MAC-2: *p < 0.001 compared to Control/SAL; **p < 0.001 compared to CS/SAL group and ***p < 0.001 compared to Control/LPS group. Control/SAL n = 9, Control/LPS n = 9, CS/SAL n = 7, CS/LPS n = 5. Photomicrographs of MAC-2 in lung parenchyma (B) Control/SAL group; (C) Control/LPS group; (D) CS/SAL group and (E) CS/LPS group, 400X magnification. (F) Neutrophils: *p < 0.001 compared to Control/SAL; **p < 0.001 compared to CS/SAL group and ***p < 0.001 compared to Control/LPS group. Control/SAL n = 9, Control/LPS n = 9, CS/SAL n = 8, CS/LPS n = 5. Photomicrographs of neutrophils in lung parenchyma (G) Control/SAL group; (H) Control/LPS group; (I) CS/SAL group and (J) CS/LPS group, 400X magnification. (K) CD4+: *p < 0.001 compared to Control/SAL. **p < 0.001 compared to CS/SAL and Control/LPS groups. Control/SAL n = 9, Control/LPS n = 9, CS/SAL n = 8, CS/LPS n = 5. Photomicrographs of CD4 T cells in lung parenchyma (L) Control/SAL group; (M) Control/LPS group; (N) CS/SAL group and (O) CS/LPS group, 400X magnification. Data were expressed as log10 base. ANOVA, Holm-Sidak post hoc. Data are presented as means and SE.
