Figure 2
From: Evolutionary dynamics of the chromatophore genome in three photosynthetic Paulinella species

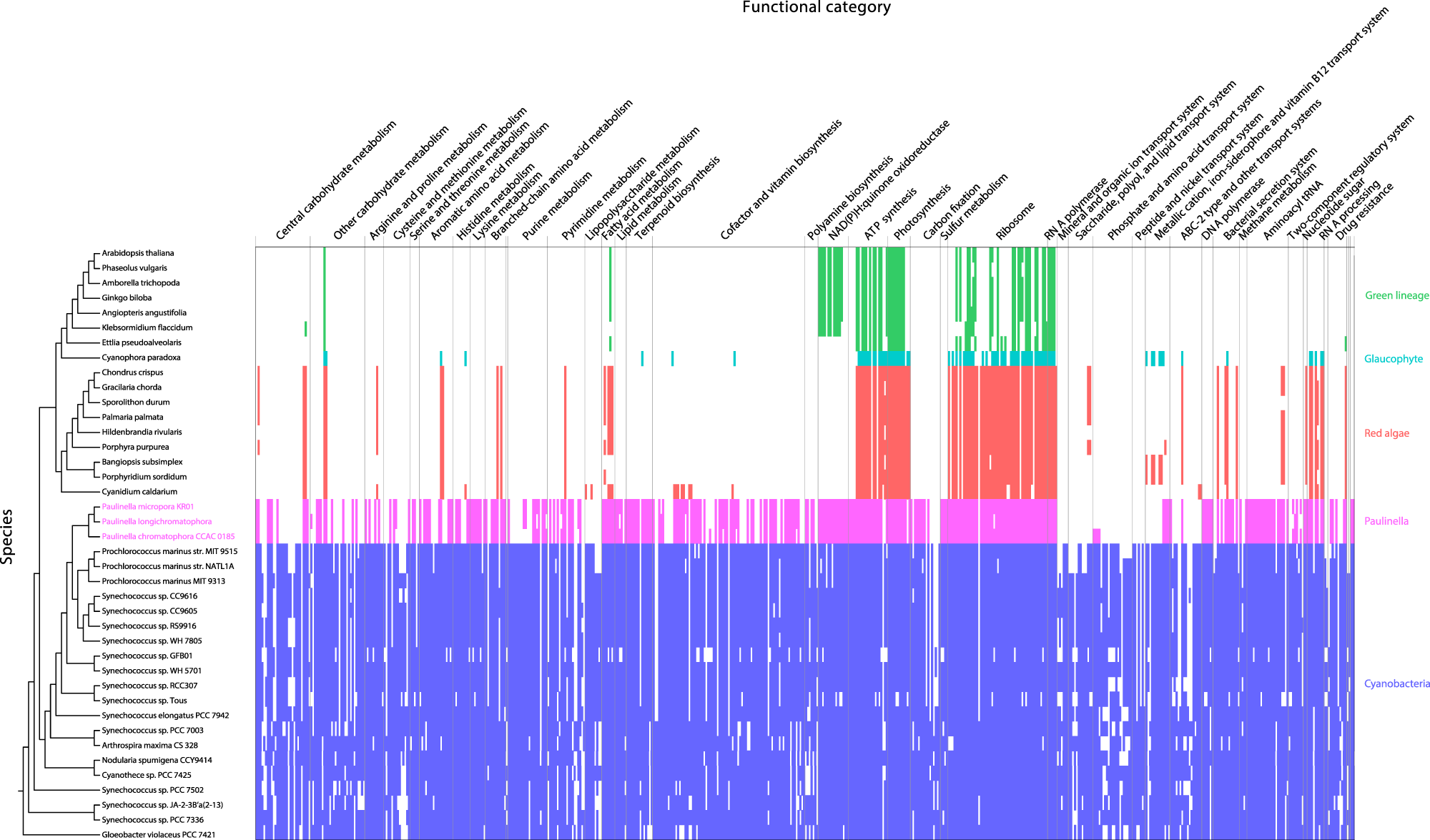

Heatmap with genomes of chromatophores, cyanobacteria, and Archaeplastida plastids categorized by KEGG pathways annotated as Orthologous Gene Families (OGFs). A total of 401 OGFs (x-axis) are ordered according to their KEGG annotation category. Each tick indicates genes present in the OGFs; red indicates red algae, green are green lineage species, cyan indicates glaucophytes, pink indicates Paulinella, and blue indicates cyanobacteria. On the left side of heatmap, the tree was constructed in a concatenated phylogenomic analysis of amino acids data using 20 orthologous genes from a total of 40 representative genomes in Archaeplastida plastids, cyanobacteria, and chromatophore genomes of Paulinella lineages (Supplementary Table S6).
