From: Comparative Physiological and Metabolic Analysis Reveals a Complex Mechanism Involved in Drought Tolerance in Chickpea (Cicer arietinum L.) Induced by PGPR and PGRs

Figure 5

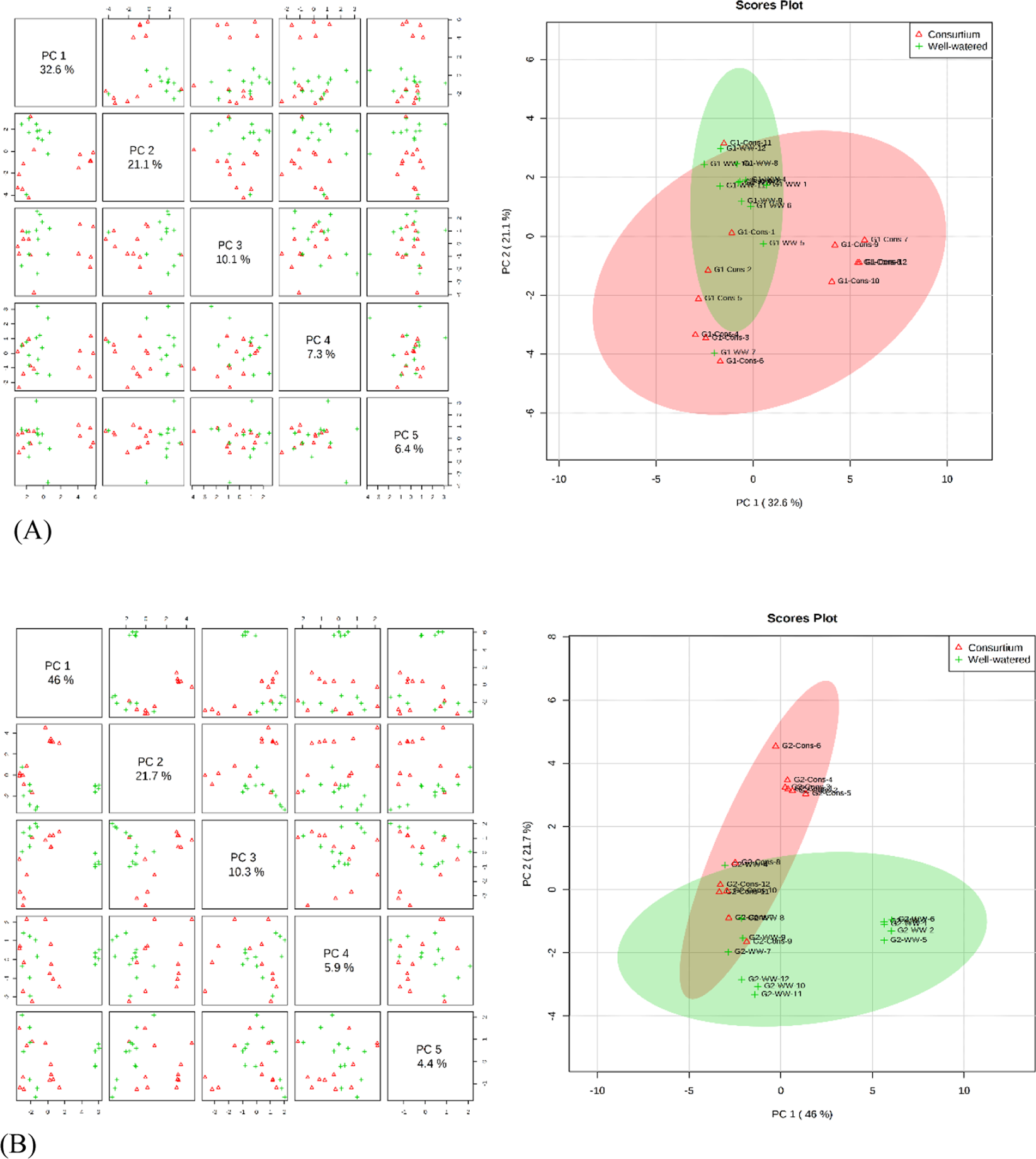

Partial least square discriminant analysis (PLS-DA) and 2D Scores loading plot for the drought sensitive variety Punjab Noor-2009 (A) and drought tolerant variety 93127 (B) at 2 time points under control (well-watered) and consortium treatments (A). Metabolites at two treatments overlapped with each other indicating an unchanged state of metabolite levels in the chickpea leaves.
