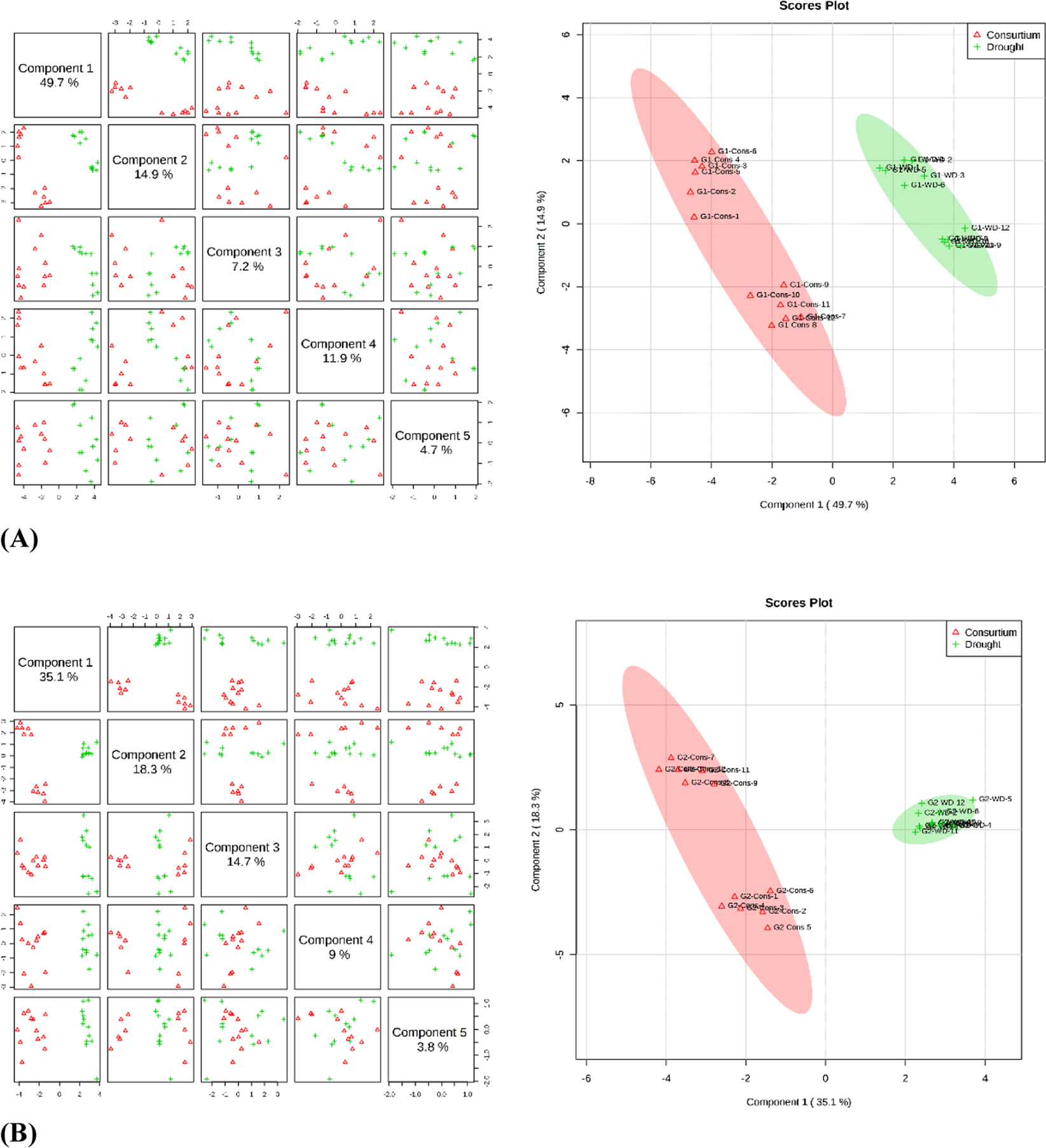

Partial least square discriminant analysis (PLS-DA) and 2 Scores loading plot for the drought sensitive variety Punjab Noor-2009 (A) and drought tolerant variety 93127 (B) at 2 time points under consortium and drought treatments. Metabolites at consortium and drought treatments did not overlap indicating an altered state of metabolite levels in the chickpea leaves.
