Figure 2

From: Emergence of supercontraction in regenerated silkworm (Bombyx mori) silk fibers

Figure 2

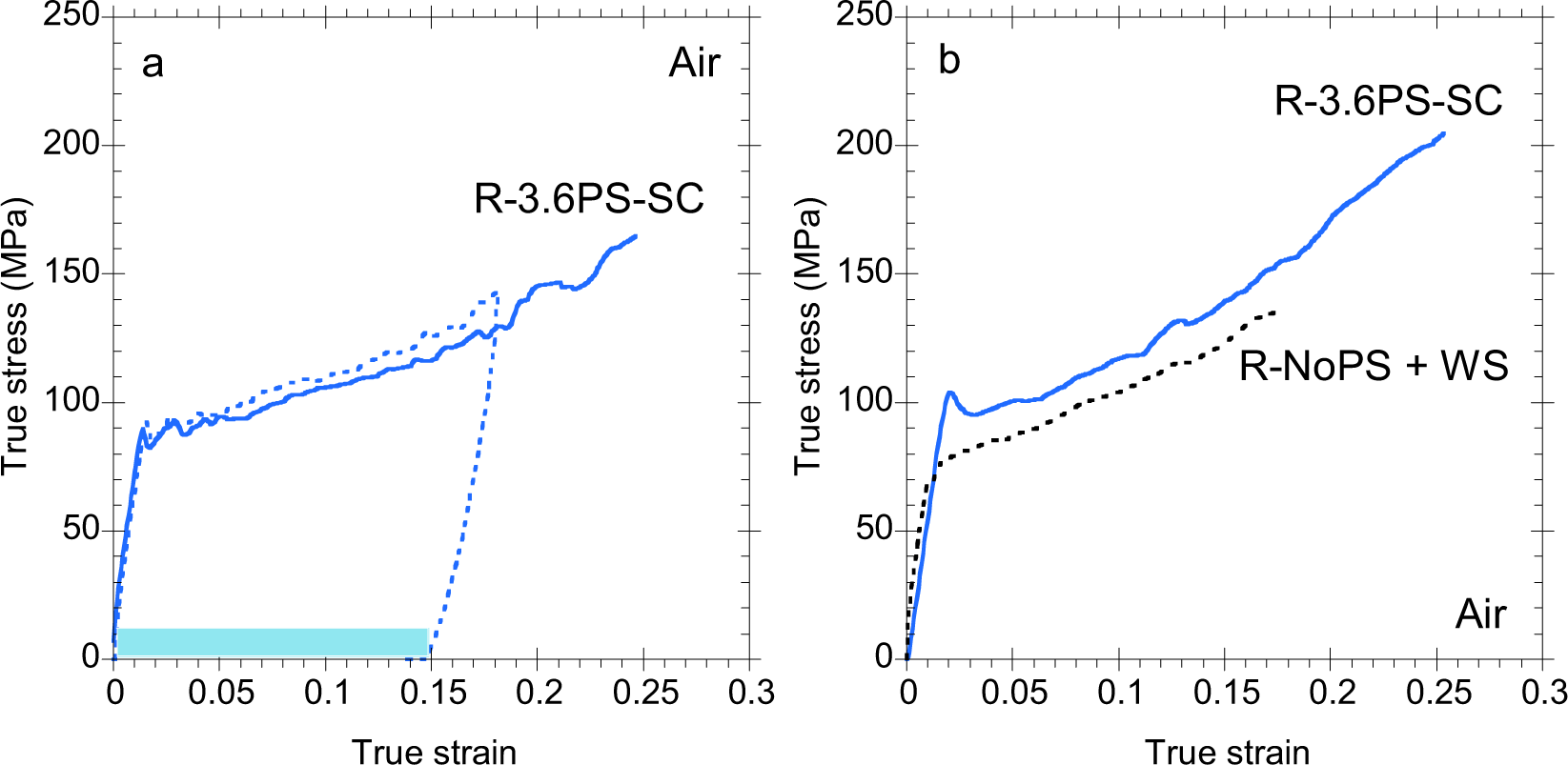

(a) A representative recovery test of a R-3.6PS-SC regenerated silk fiber. The maximum supercontraction step between the first and the second tensile tests is indicated by the light blue rectangle. (b) Comparison of the true stress-true strain of a R-3.6PS regenerated silk fiber after maximum supercontraction (R-3.6PS-SC) and an R-NoPS regenerated silk fiber subjected to wet stretching.
