Figure 7

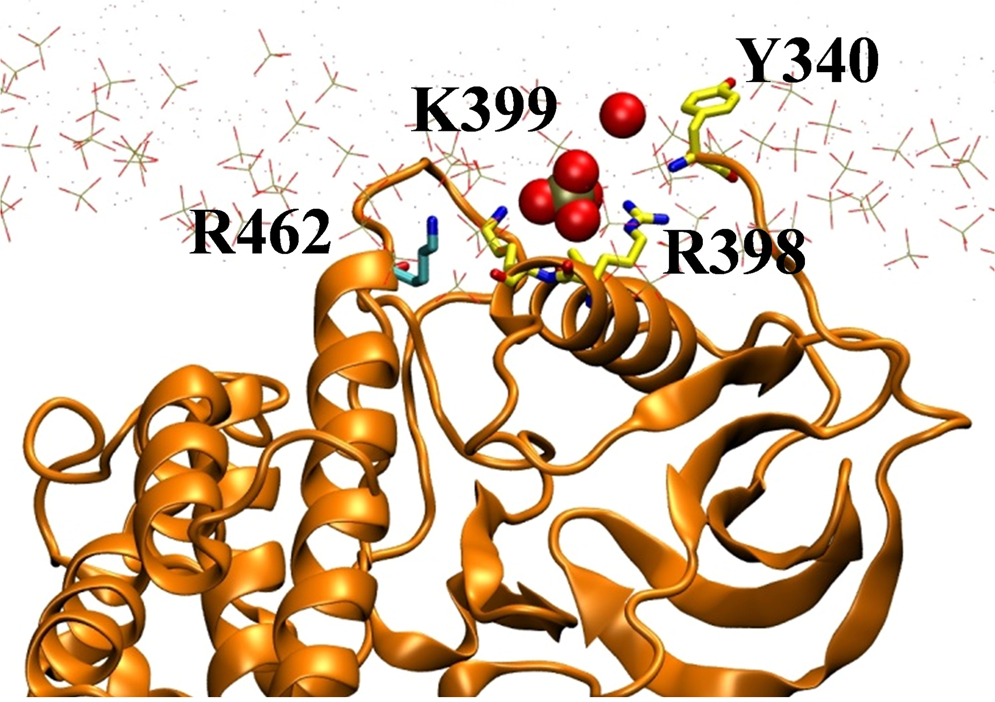

From: Three distinct regions of cRaf kinase domain interact with membrane
PA lipid shown in vdW spheres (red:oxygen and tan:phosphorous) with \({t}_{res}^{{\rm{\max }}}\) = 125 ns for R398 forms multivalent salt bridges with protein residues from three different regions of the cRaf:KinaseD including residues Y340 (NtA), R398 and K399 (basic cluster) and R462 (AS). The kinase domain is in orange ribbon, membrane is shown as lines with O: red, P: tan, N: blue and selected residues shown as sticks (C:cyan).
