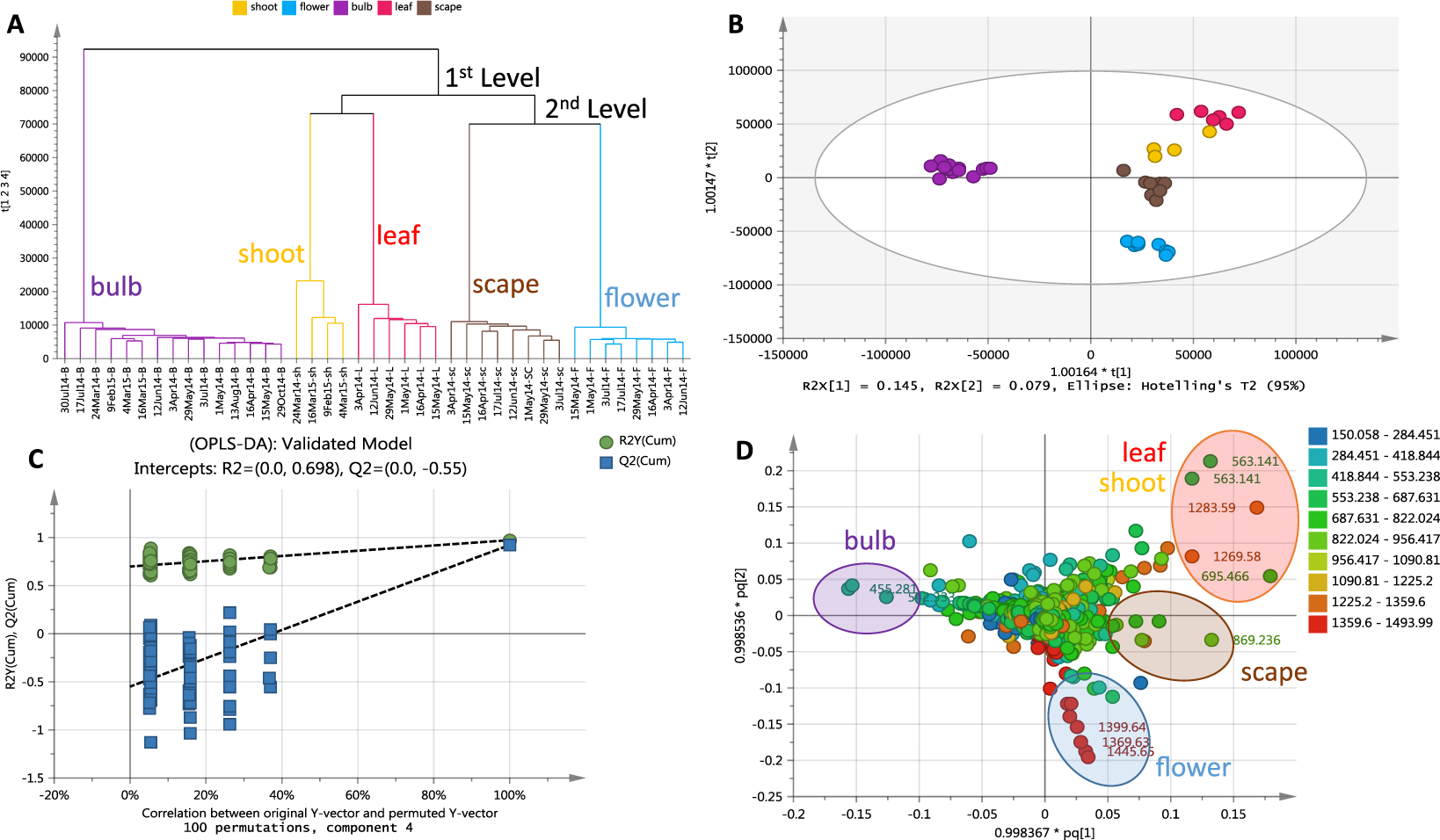

(A) HCA plot generated from the OPLS-DA model and (B) OPLS-DA scores scatter plot of extracts obtained from different plant parts of British bluebells (R2 = 0.948, Q2 = 0.748). (C) Permutation test plot to validate the OPLS-DA model. (D) OPLS-DA loadings scatter plot differentiating the unique metabolites for each of the group cluster as highlighted.
