From: Effects of poling and crystallinity on the dielectric properties of Pb(In1/2Nb1/2)O3-Pb(Mg1/3Nb2/3)O3-PbTiO3 at cryogenic temperatures

Figure 1

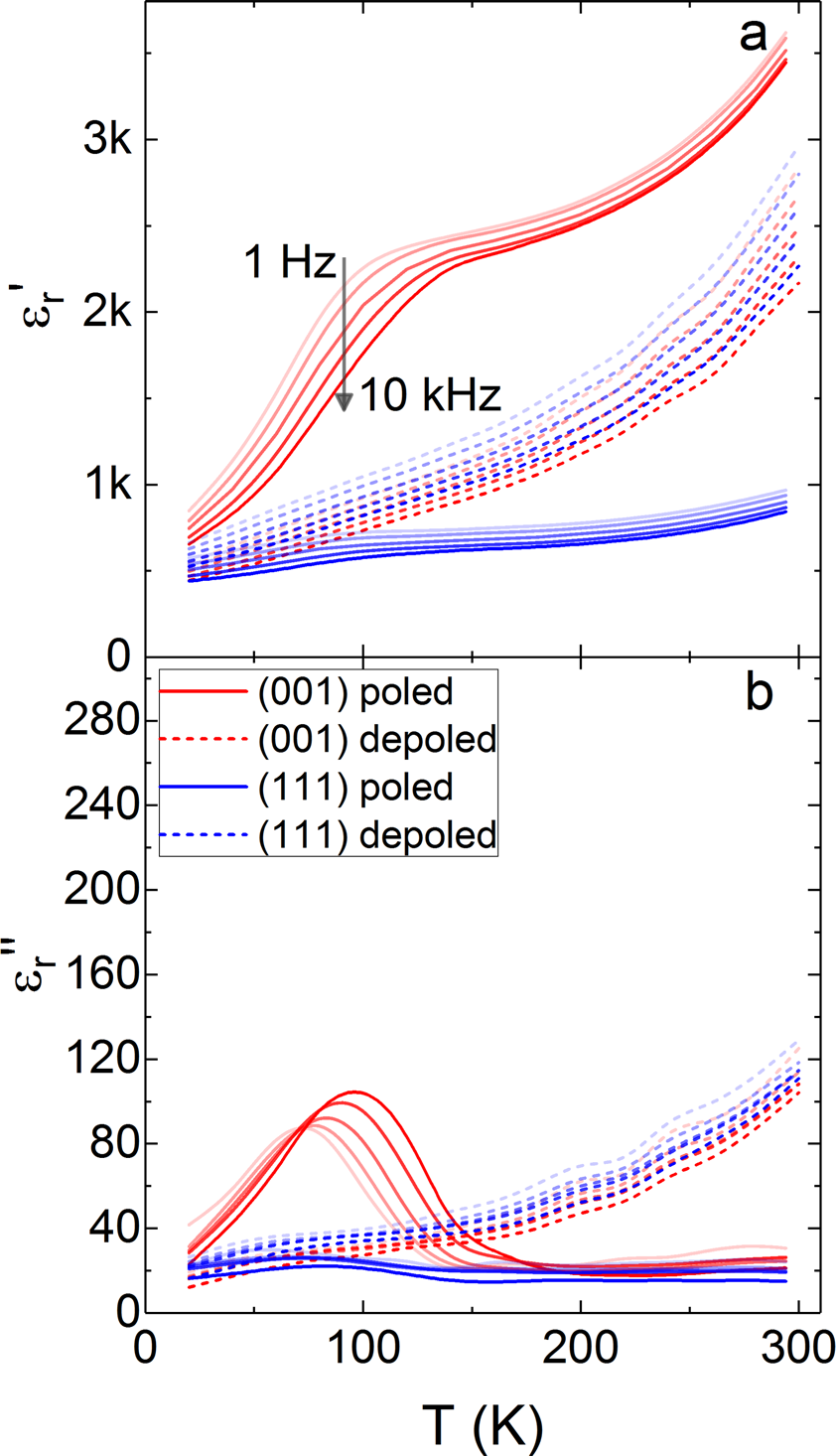

The (a) real and (b) imaginary parts of the dielectric permittivity in (001) and (111) cut PIN-PMN-PT single crystals are shown at temperatures from 20 K to 300 K. The solid, red lines are for the poled (001) cut and the dashed, red lines are for the depoled (001) cut. The solid, blue lines are for the poled (111) cut and the dashed, blue lines for the depoled (111) cut.
