Figure 3

From: Effects of poling and crystallinity on the dielectric properties of Pb(In1/2Nb1/2)O3-Pb(Mg1/3Nb2/3)O3-PbTiO3 at cryogenic temperatures

Figure 3

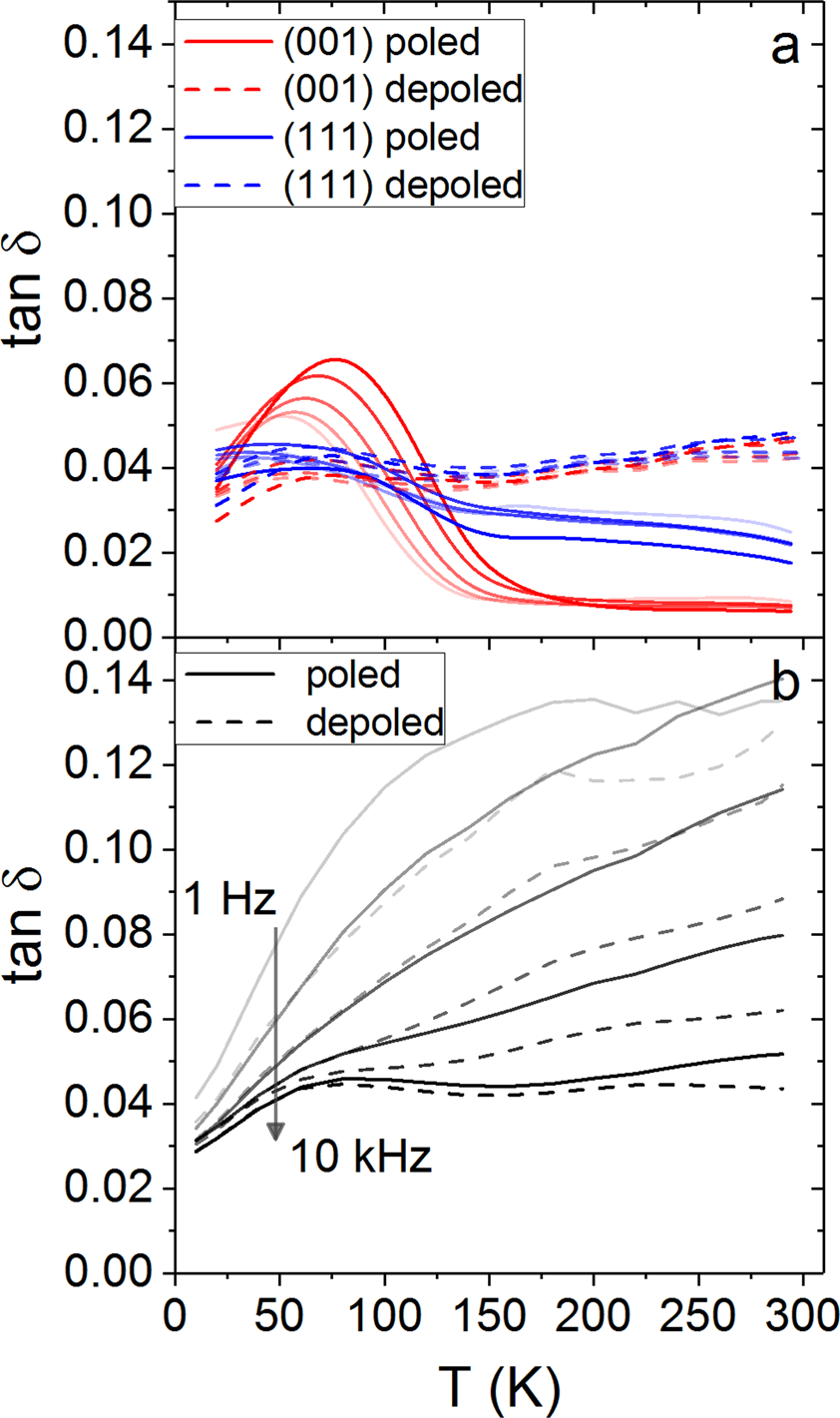

The dielectric loss in (a) (001) and (111) cut PIN-PMN-PT single crystals and (b) a polycrystalline ceramic are shown at temperatures from 10 K to 300 K. The solid lines are for the poled material and the dashed are for the depoled material. The red lines are for the (001) cut, the blue lines are for the (111) cut and the black lines are for the polycrystalline ceramic.
