Figure 1

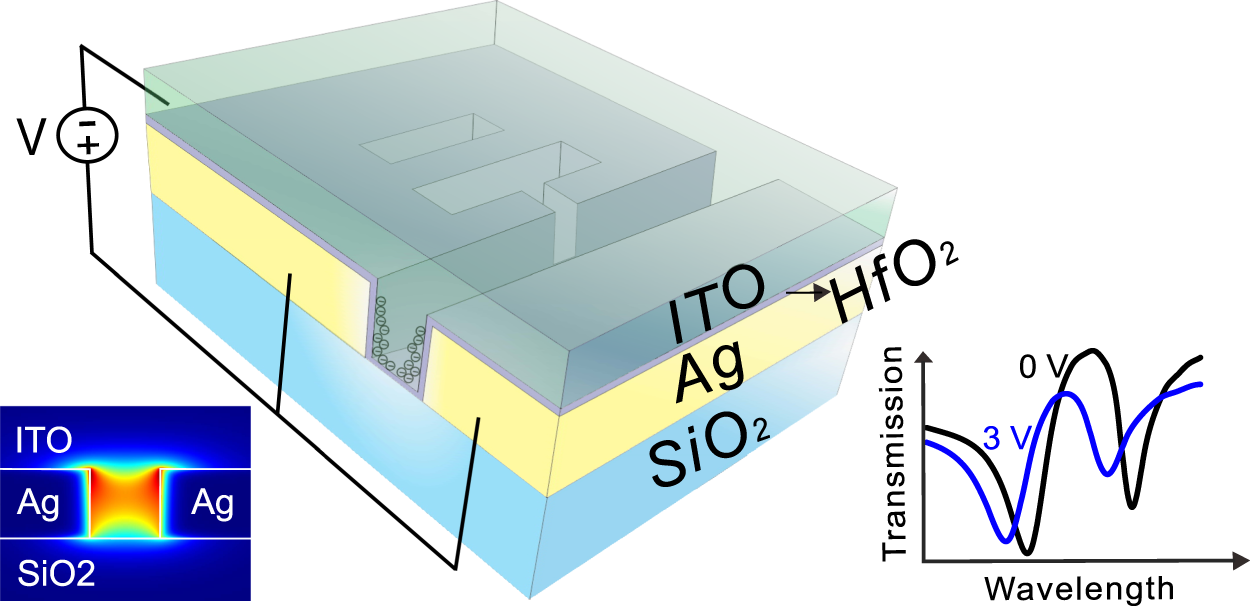

Schematic of ITO-filled plasmonic modulator showing a formation of accumulation layer at the ITO-HfO₂ interface under external electrical bias. Left bottom inset shows the magnetic field distribution of the gap-plasmon mode inside the waveguide. Right bottom inset shows the output transmissions under 0V and 3V bias.
