Figure 2

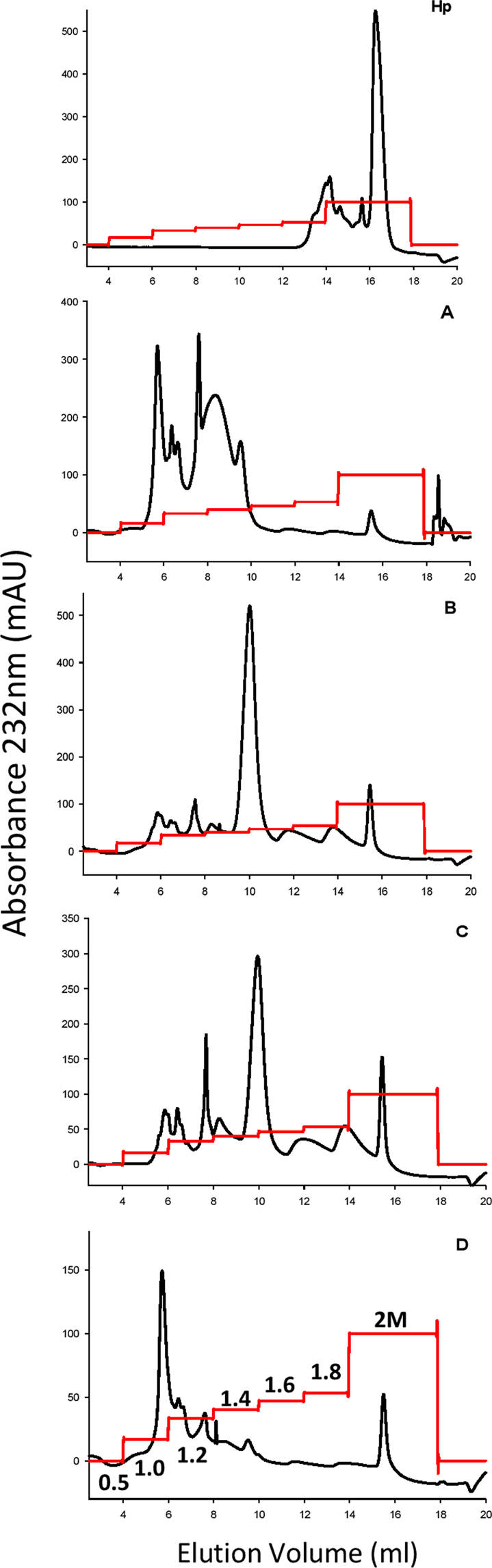

Strong anion-exchange chromatography of Hp and by-products. 200 µg of intact samples were separated by a step increase in concentration of NaCl (1.0, 1.2, 1.4, 1.6, 1.8 and 2 M, the red line is conductance and is an AKTA output with the scale relative to the maximum absorbance peak of the y-axis) at a flow rate of 0.5 ml/min. Samples were detected by UV at 232 nm.
