Figure 4

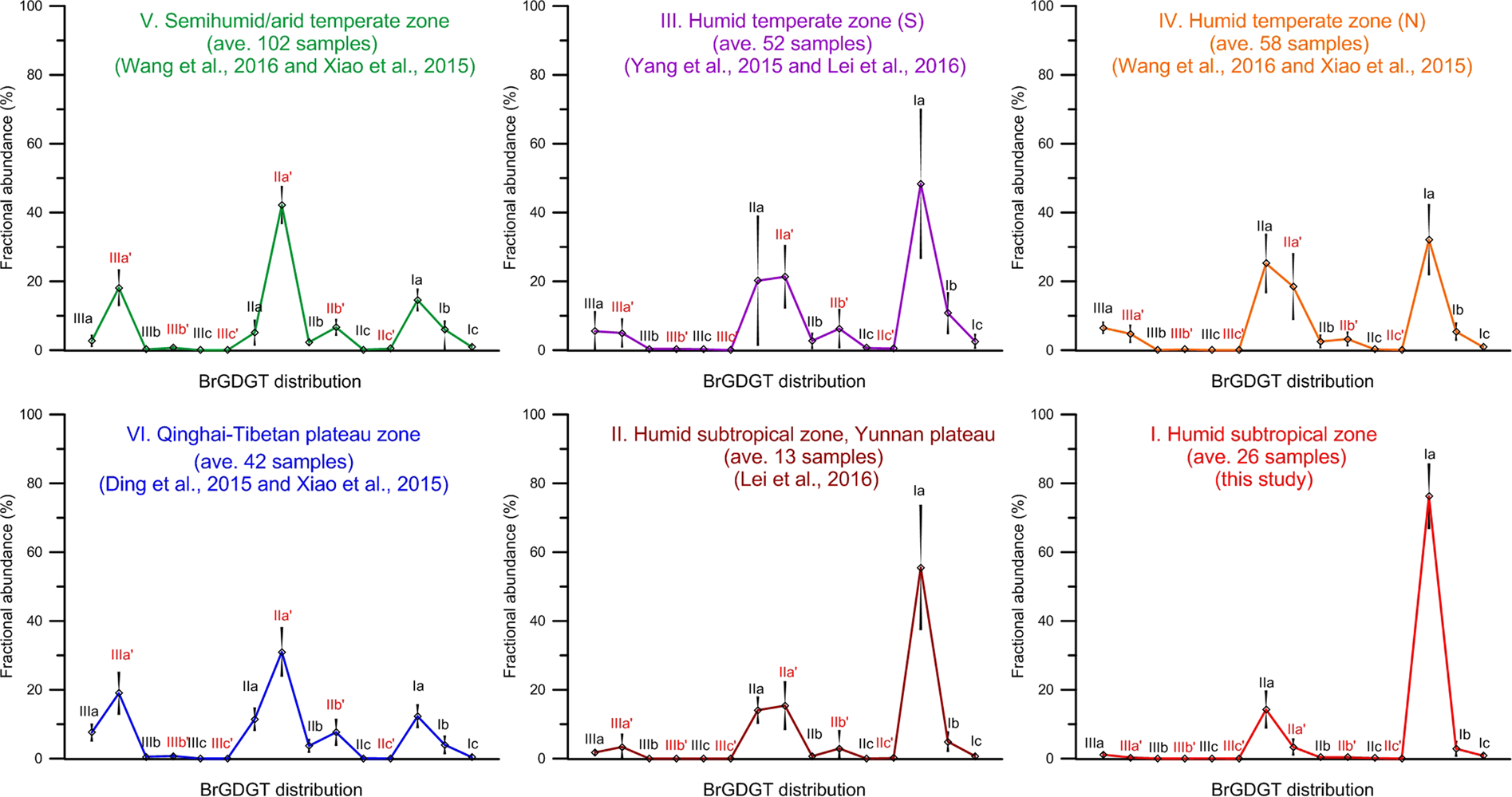

The brGDGTs distributions from different climate regions across China. Samples are divided into six groups (from I to VI) according to their location and climate conditions (Fig. 1). Each plot presents the average abundance of each brGDGT fraction from the same group. Standard deviations of brGDGTs abundance are indicated for each fraction.
