Figure 1
From: Lamellar ordering, droplet formation and phase inversion in exotic active emulsions

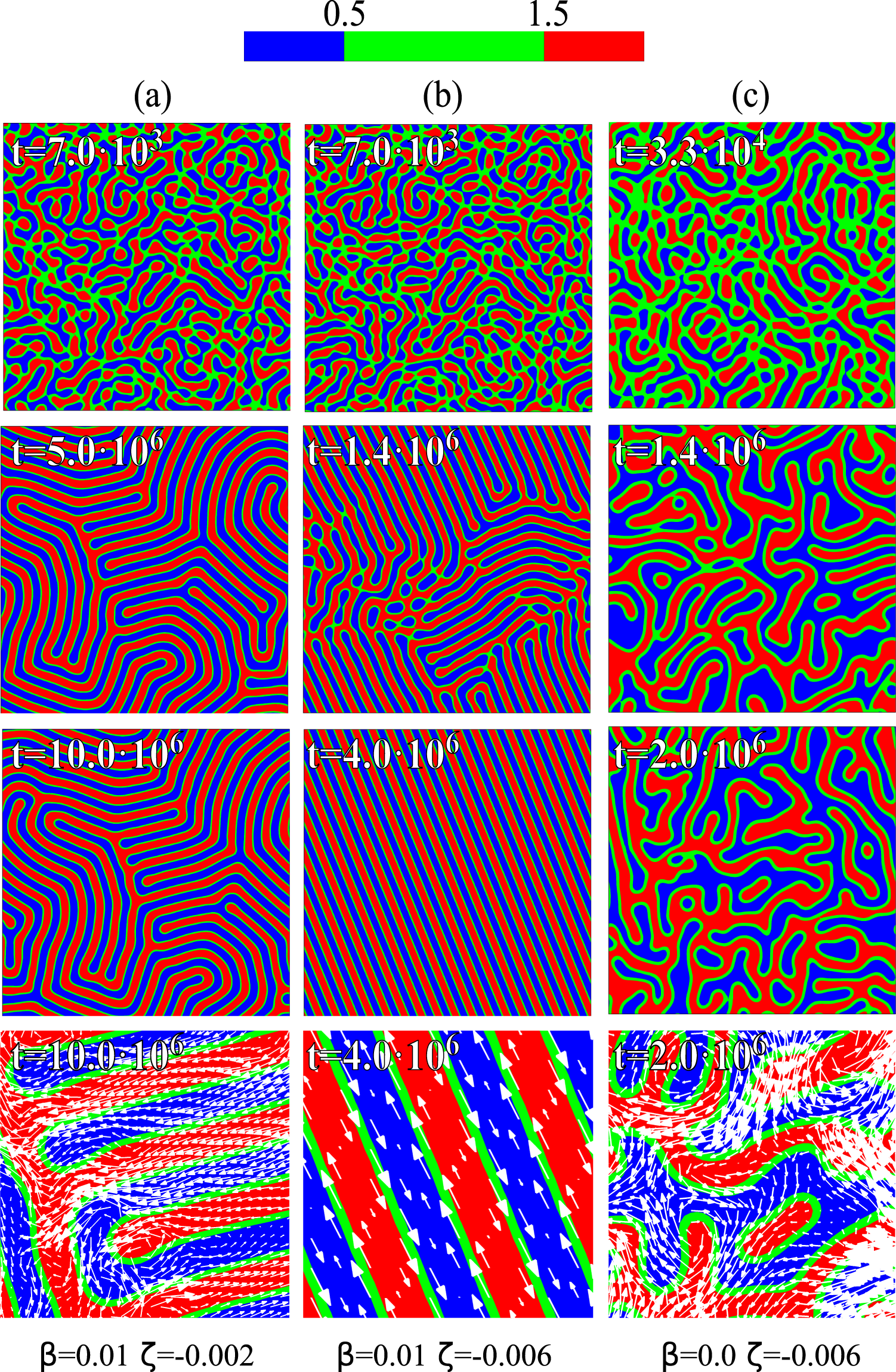

Contour plots of ϕ at various times, for 50:50 composition mixtures with small contractile activity. Each column represents a different physical situation: (a) and (b) show a contractile emulsion with normal anchoring and a different value of ζ; (c) shows a contractile emulsion with no anchoring. In (b) normal anchoring and moderate activity favour the formation of a regular array of lamellae. The last row shows a zoom of the velocity field in the system. These simulations have been performed on a square lattice of size L = 128. The color range of the contour plot is the same for all figures and is defined as follows: red (active phase) if ϕ > 1.5, green if 0.5 < ϕ < 1.5, blue (passive phase) if ϕ < 0.5.
