Figure 2
From: Prospects for Bioinspired Single-Photon Detection Using Nanotube-Chromophore Hybrids

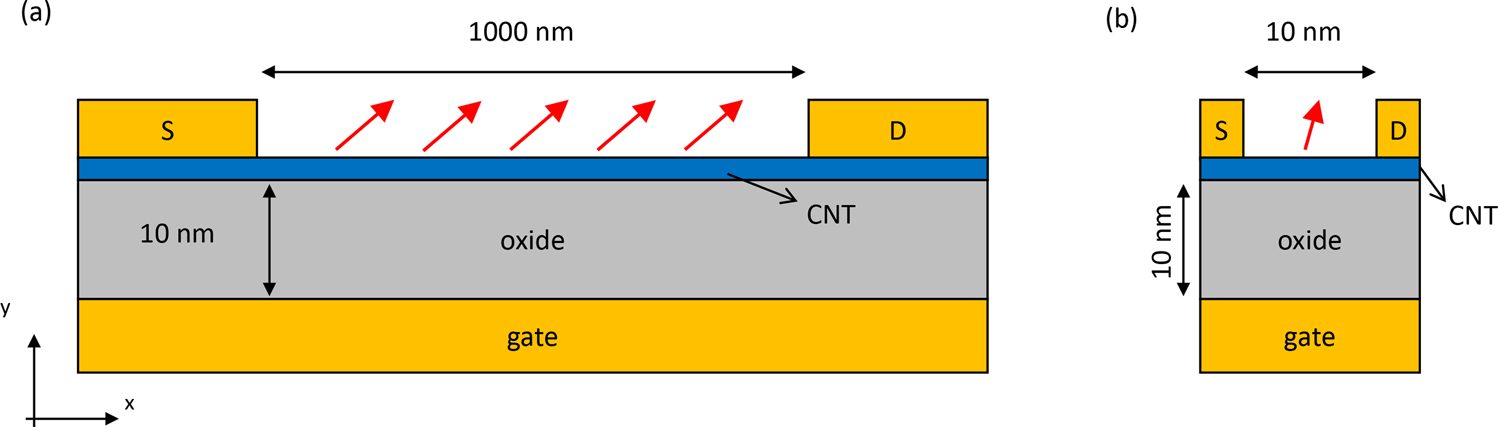

Sketch of the simulated CNT transistors functionalized with dipolar molecules. The red arrows represent the change in molecular dipole moment upon light absorption. (a) Long channel transistor. (b) Short channel transistor.
