Figure 2
From: A compact tunable quadrupole lens for brighter and sharper ultra-fast electron diffraction imaging

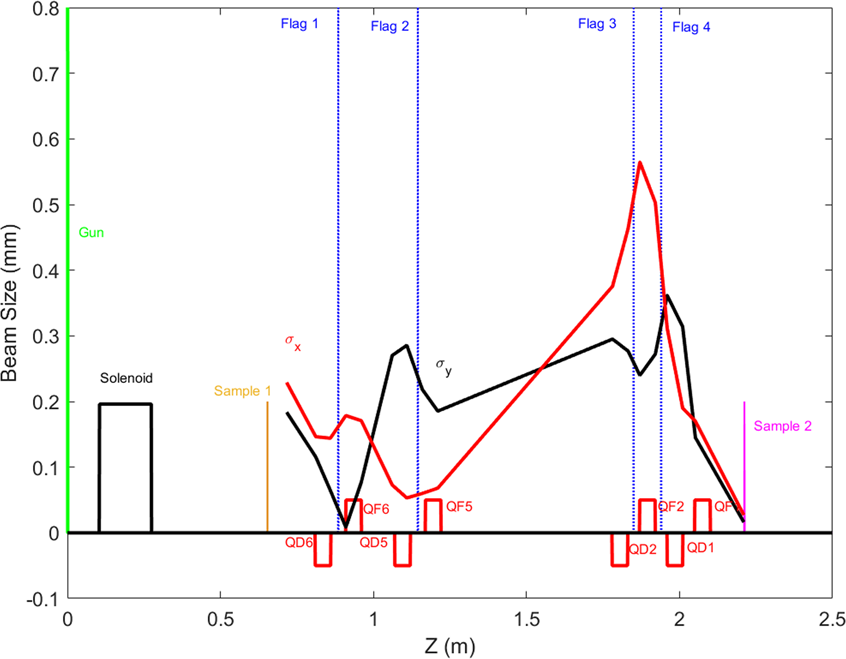

Horizontal σx and vertical σy beam sizes along the beamline. Locations of the beamline elements are also shown.
Figure 2 | Scientific Reports
