From: The miRNA-targeted transcriptome of porcine alveolar macrophages upon infection with Porcine Reproductive and Respiratory Syndrome Virus

Figure 6

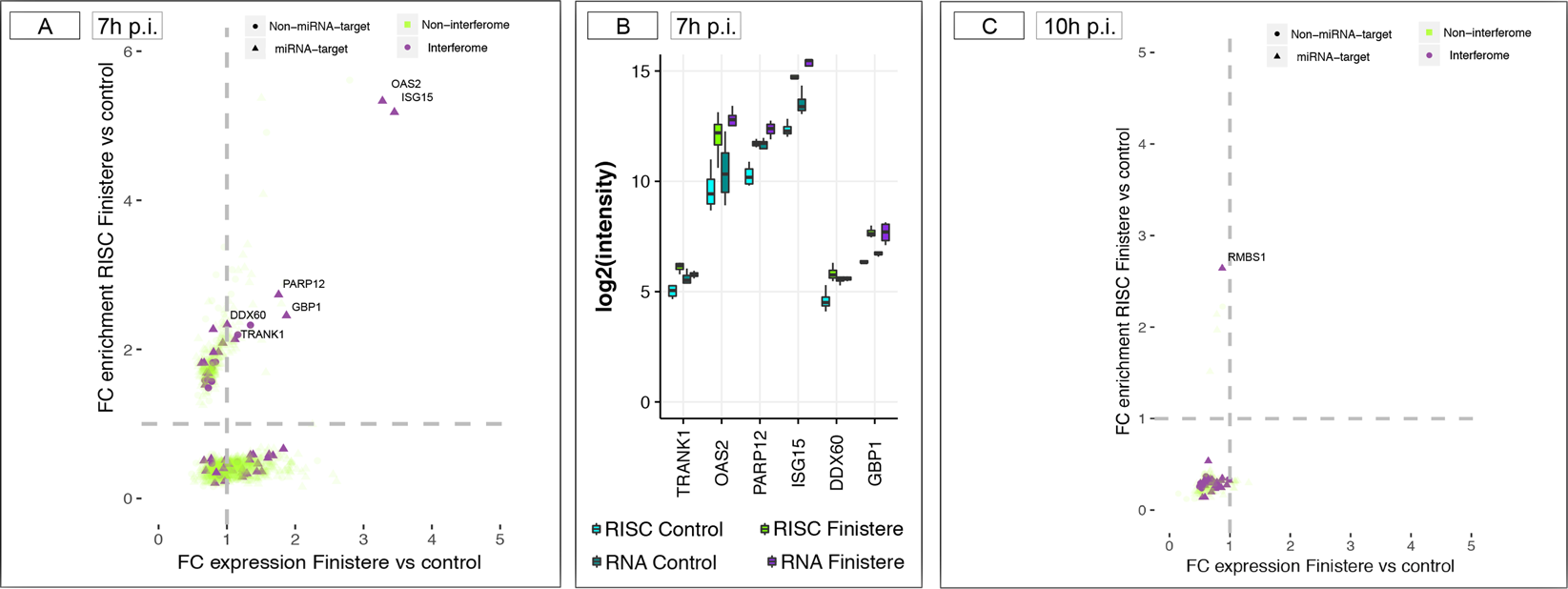

RISC-bound Interferon Regulated Genes (IRGs). (A) Distribution of IRGs within the 1,241 RISC-bound genes at 7 h p.i. The scatter plot depicts changes in mRNA levels in the whole cell (x axis) and in the RISC compartment (y axis). IRGs (violet dots) were identified using the interferome v2.0 (http://interferome.its.monash.edu.au/interferome/) database. Shape of dots indicates whether each IRG was targeted by at least one miRNA (triangle) or not-targeted (round). (B) RISC-enriched IRGs that were targeted by at least on miRNA and displayed positive FC values in the whole cell. (C) Distribution of IRGs within the 141 RISC-bound genes at 10 h p.i.
