From: The miRNA-targeted transcriptome of porcine alveolar macrophages upon infection with Porcine Reproductive and Respiratory Syndrome Virus

Figure 8

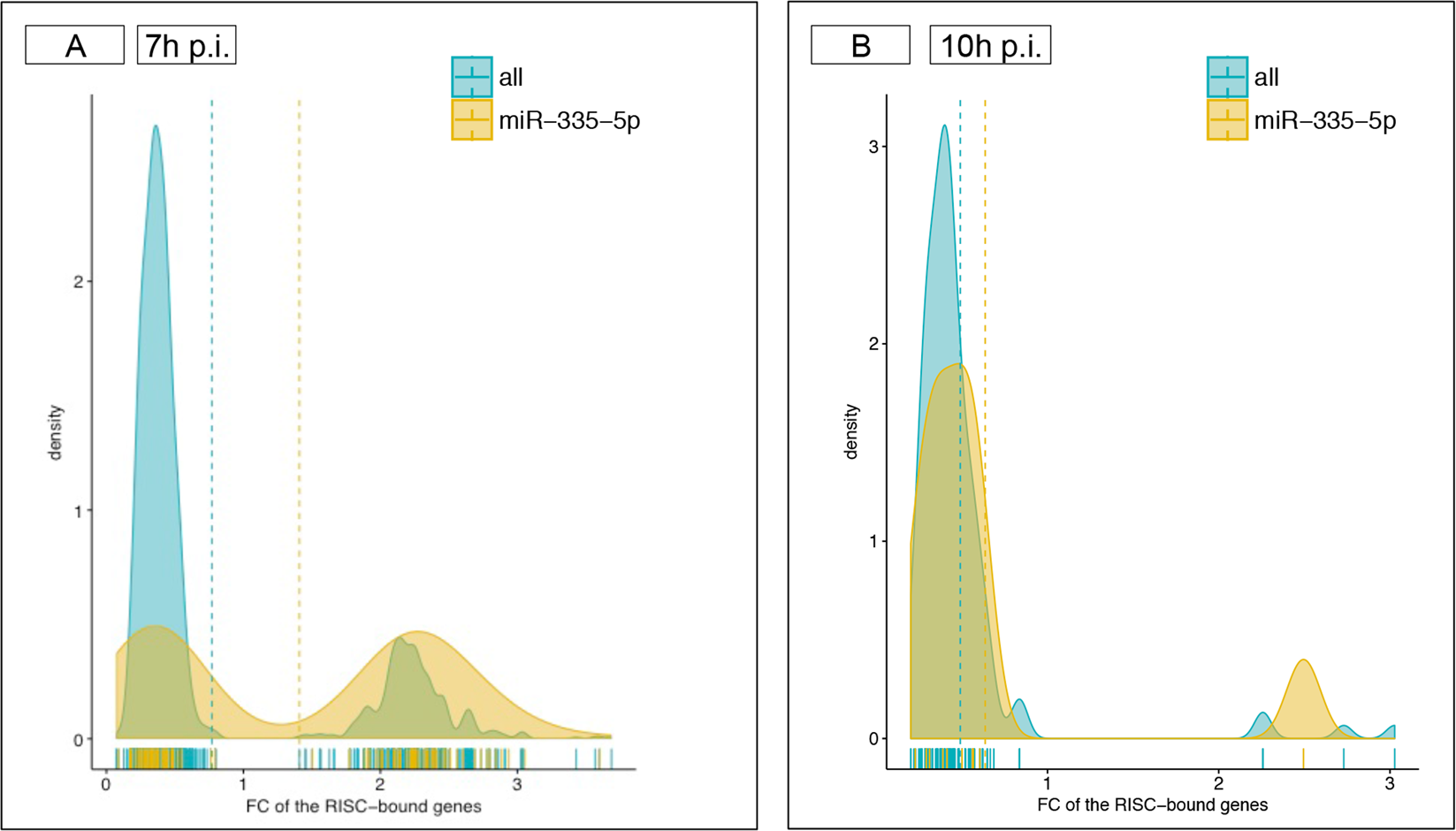

Putative targets of miRNA-335-5p. (A) The density plot visualizes the FC values of RISC-bound genes targeted by miR-335-5p (orange) compared to the FC values of the RISC-bound genes targeted by other miRNAs (blue) at 7 h p.i. Due to the similar proportion of enriched (n = 62) and depleted (n = 54) target genes of miR-335-5p at 7 h p.i., a bimodal distribution was observed. (B) The density plot visualizes the FC values of the 10 RISC-bound genes targeted by miR-335-5p (orange) compared to the FC values of the RISC-bound genes targeted by other miRNAs (blue) at 10 h p.i.
