From: Integrated single-base resolution maps of transcriptome, sRNAome and methylome of Tomato yellow leaf curl virus (TYLCV) in tomato

Figure 5

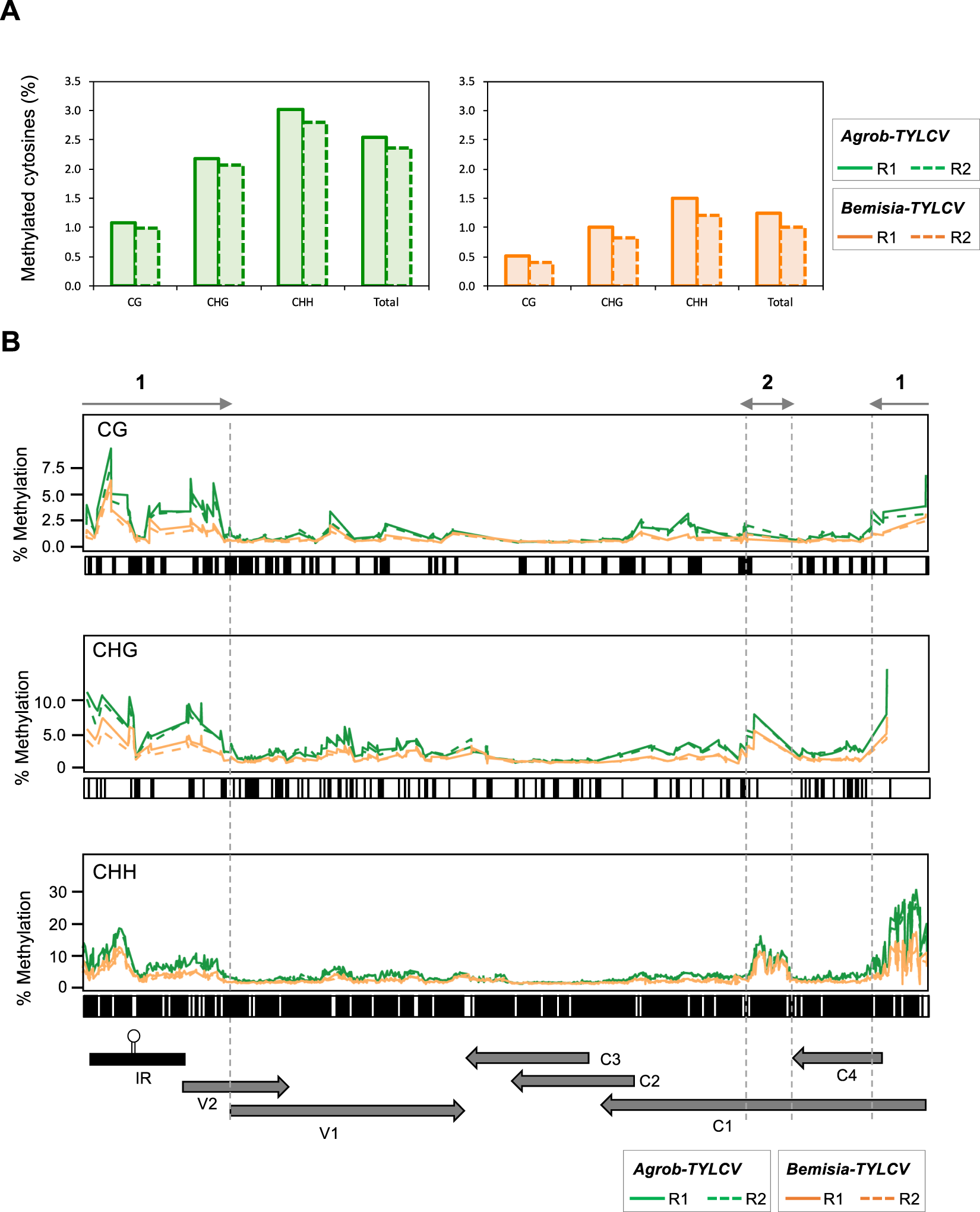

High resolution methyome of TYLCV. Tomato plants were infected by either agroinoculation (Agrob-TYLCV, green) or using the whitefly B. tabaci (Bemisia-TYLCV, orange). (A) The histogram shows the percentage of cytosine residues methylated at each cytosine context (CG, CHG and CHH) and the total methylation in TYLCV genome at 14 dpi. Each bar corresponds to an independent biological replicate (R1, solid line and R2, dotted line). (B) The graphs show the percentage of methylated cytosines in different contexts, CG, CHG and CHH, at each position in TYLCV genome (please note the differences in the scale between the three cytosine contexts). Each line corresponds to an independent biological replicate (R1, solid line and R2, dashed line). The position of each cytosine context on TYLCV genome, is represented by a dark line underneath each graph. The genome organization of TYLCV is shown schematically underneath the graphs. The two highest methylated regions are indicated by a grey solid line with arrowheads (1 and 2).
