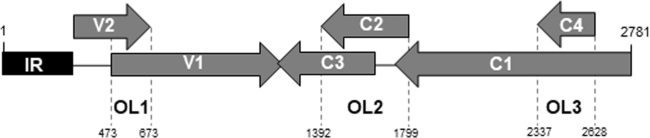

Table 3 Distribution of vsRNA abundance along TYLCV genome.


Region	Start	End	Size	Number of vsRNA per nucleotide
				Agrob-TYLCV (dpi)			Bemisia-TYLCV (dpi)
				7	14	21	7	14	21
IR	1	313	313	30	207	232	6	114	192
V2	314	472	159	76	739	615	5	413	543
V2/V1	473	673	201	343	1356	1336	72	1059	1430	OL1
V1-C3	674	1391	718	119	569	481	75	476	587
C1/C2/C3	1392	1799	408	303	1627	1708	67	1317	2155	OL2
C1- 3′end	1800	2336	537	109	534	488	23	361	473
C1/C4	2337	2628	292	255	1628	1741	55	1062	1616	OL3
C1- 5′end	2629	2781	150	19	128	119	4	78	126
Genome	1	2781	2781	146	832	818	31	616	893

Tomato plants were infected by either agroinoculation (Agrob-TYLCV) or by B. tabaci (Bemisia-TYLCV) and data from different time points during the systemic infection are shown (7, 14 and 21 dpi). The values represent the number of vsRNA (20–25 nt) per nucleotide at distinct genomic regions according to the position of the viral 5′nucleotide. The regions are identified by the viral genes they encompass, their size (nt) and their coordinates according to the TYLCV genome map are indicated at the top. The three genomic regions that showed the maximum number of vsRNA per nucleotide (OL1, OL2 and OL3) are marked in bold. Data comes from the same biological replicates showed in Fig. 4A,B.
