Figure 1

From: Genotoxic stress increases cytoplasmic mitochondrial DNA editing by human APOBEC3 mutator enzymes at a single cell level

Figure 1

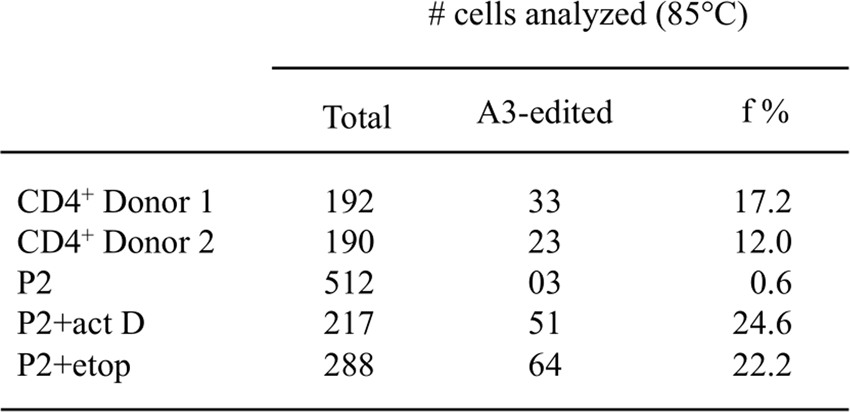

Frequencies of A3-edited cymtDNA in single cells. Frequencies of single cells harboring A3-edited cymtDNA using a fixed PCR denaturation temperature of 85 °C. Analysis was performed in single CD4+ T lymphocytes from 2 donors D1 and D2, ~17% and 12% of cells scored positive for APOBEC3 edited cymtDNA. Among the 512 P2 ung−/− cells analyzed at 85 °C, 3 cells (0.6%) are positive. P2 ung−/− cells were treated with 100 μM actinomycin D (act D) or etoposide (etop) for 16 hours. Treatment increased the proportion of cells showing evidence of cymtDNA editing to ~24.6% and 22.2% with actinomycin D or etoposide respectively. f: frequency, #: number.
