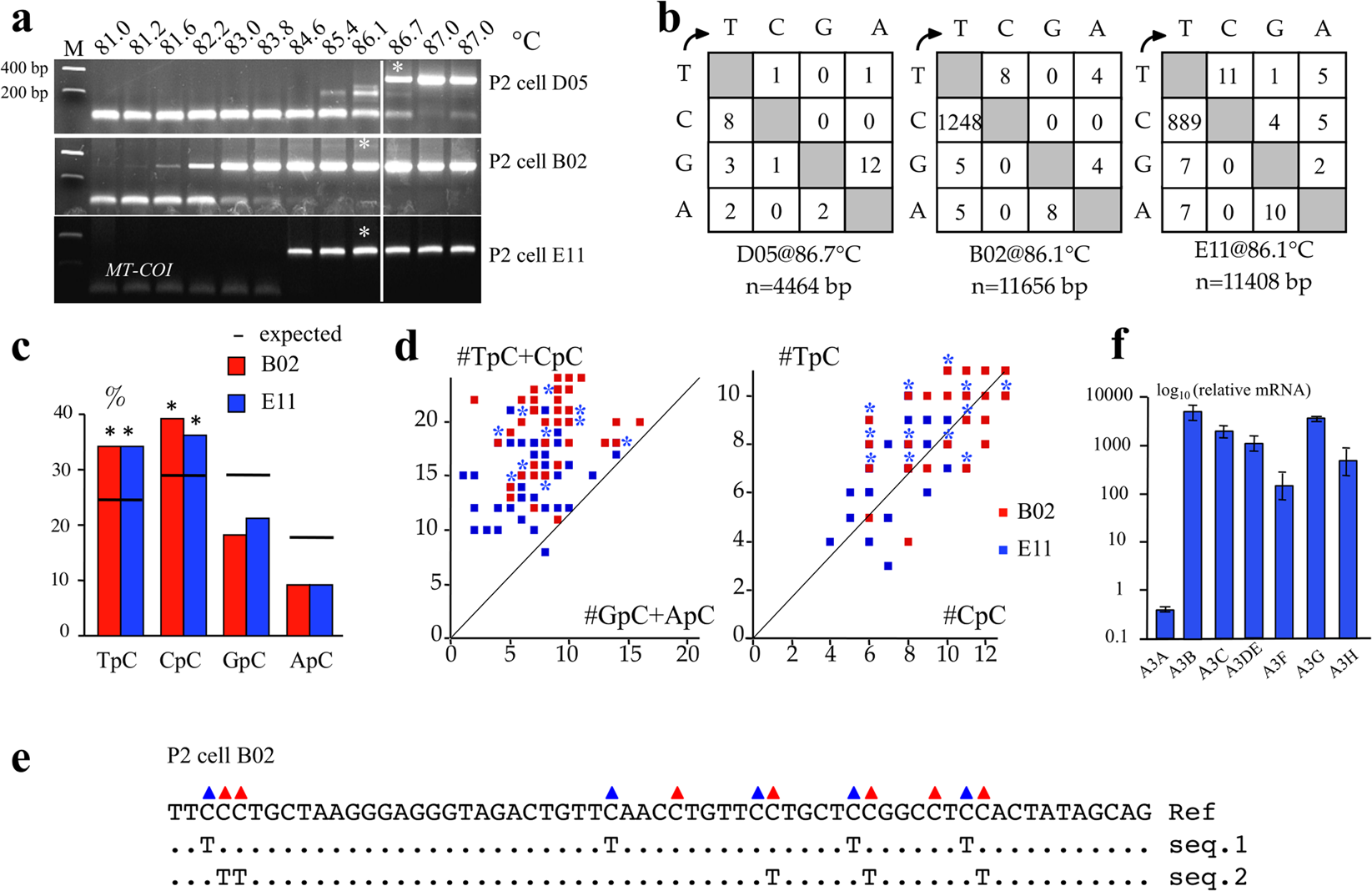

Figure 4
MT-COI editing in P2 single cell. (a) 3D-PCR recovered edited MT-COI DNA down to 81.2 °C for single cells B02 and down to 84.6 °C for single cell E11. Cell D05 did not harbor edited mtDNA and was used as a control. The white line indicates the threshold between edited and unedited 3D-PCR products in terms of the denaturation temperature. (b) Mutation matrices for hyperedited MT-COI DNA sequences from cells D05, B02 and E11 derived from cloned 3D-PCR obtained at 86.7 °C and 86.1 °C. The numbers below the matrices (n) indicate the number of nucleotides analysed. (c) Dinucleotide context of MT-COI DNA region minus strand DNA obtained in cell B02 and E11. The horizontal bar represents the expected values of dinucleotide composition (expected). Chi-square test indicates dinucleotide frequencies that significantly deviate from expected values (*p < 0.05). (d) Clonal analysis of MT-COI editing for individual edited sequences from cell B02 and E11. Blue asterisks represent the overlapping sequences between cell B02 and E11. The number (#) of TpC + CpC vs. GpC + ApC targets edited per sequence are computed and represented on the y and x axes respectively (left), and clonal analysis using TpC vs. CpC (right). (e) Edited MT-COI DNA from P2 cell B02 at a single cell level in two different dinucleotide contexts, 5′TpC in blue triangle (seq1) and 5′CpC in red triangle (seq2). (f) TaqMan analysis A3 transcriptome of bulk P2 cells. Data in triplicate were normalized to the expression levels of RPL13A housekeeping reference genes.
