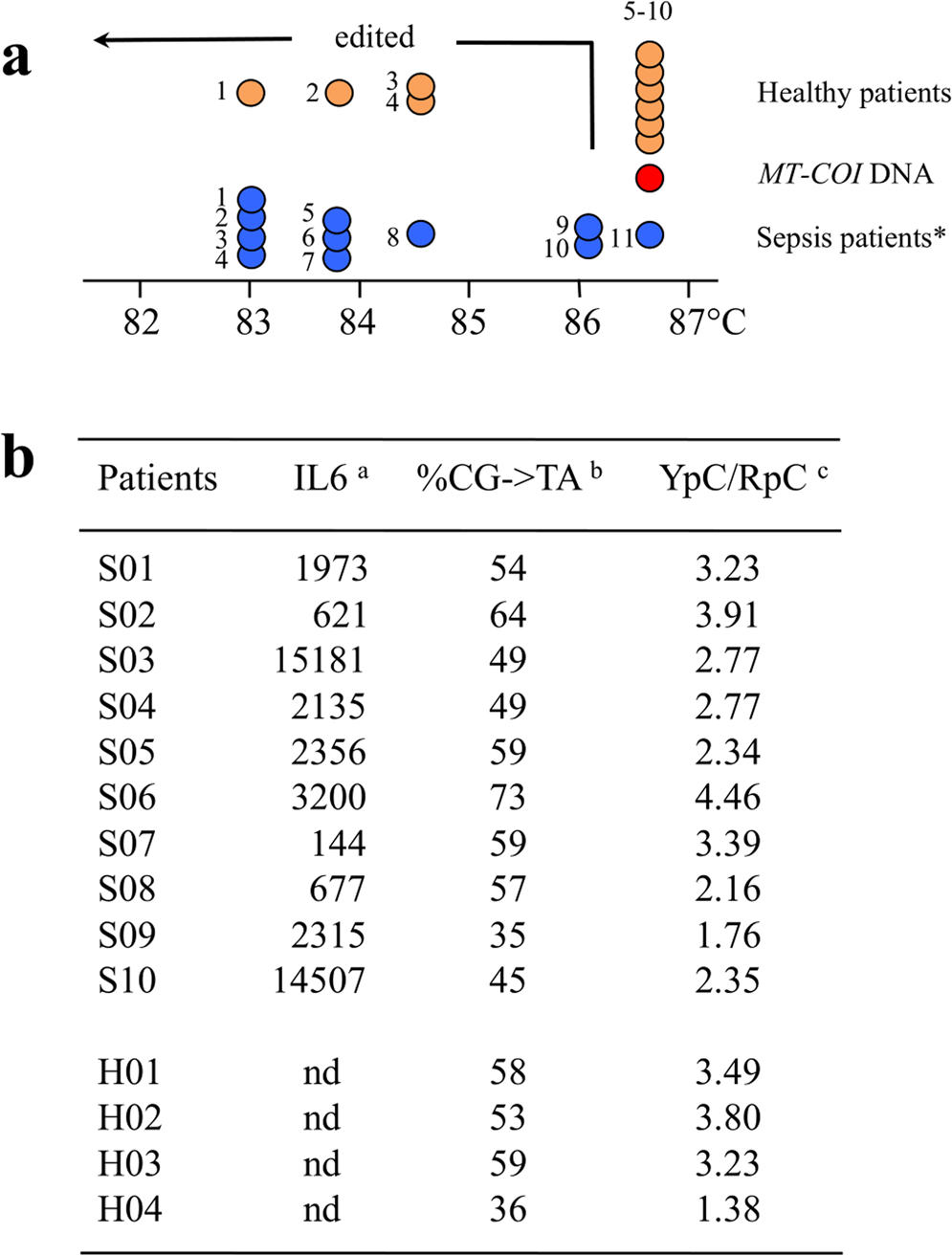

Figure 7

MT-COI editing in healthy and sepsis patients. (a) Schematic representing the denaturation temperature of the last positive 3D-PCR amplification for MT-COI DNA derived from the serum of sepsis and healthy patients. Red circle indicates a molecular COI-MT DNA clone of the reference sequence, blue circles represent serum samples from sepsis patients and orange circles represent serum samples from healthy patients. *Chi-square test indicates that mtDNA editing in sepsis patients significantly deviate from the healthy patients (p = 0.028; p < 0.05). (b) Sequence analysis of hyperedited MT-COI sequences obtained from 10 sepsis patients (S) and 4 healthy controls (H). ^aAmount of serum IL6 (pg/mole), ^bpercentage of CG-> TA edits, ^cYpC/RpC was calculated as follows: ((TpC + CpC)/(GpC + ApC)) observed/((TpC + CpC)/(GpC + ApC)) expected. A value > 1 is indicative of A3 cytidine deamination in TpC + CpC dinucleotide context. nd: not determined.
