Figure 3

From: Diterpenoid compounds from Wedelia trilobata induce resistance to Tomato spotted wilt virus via the JA signal pathway in tobacco plants

Figure 3

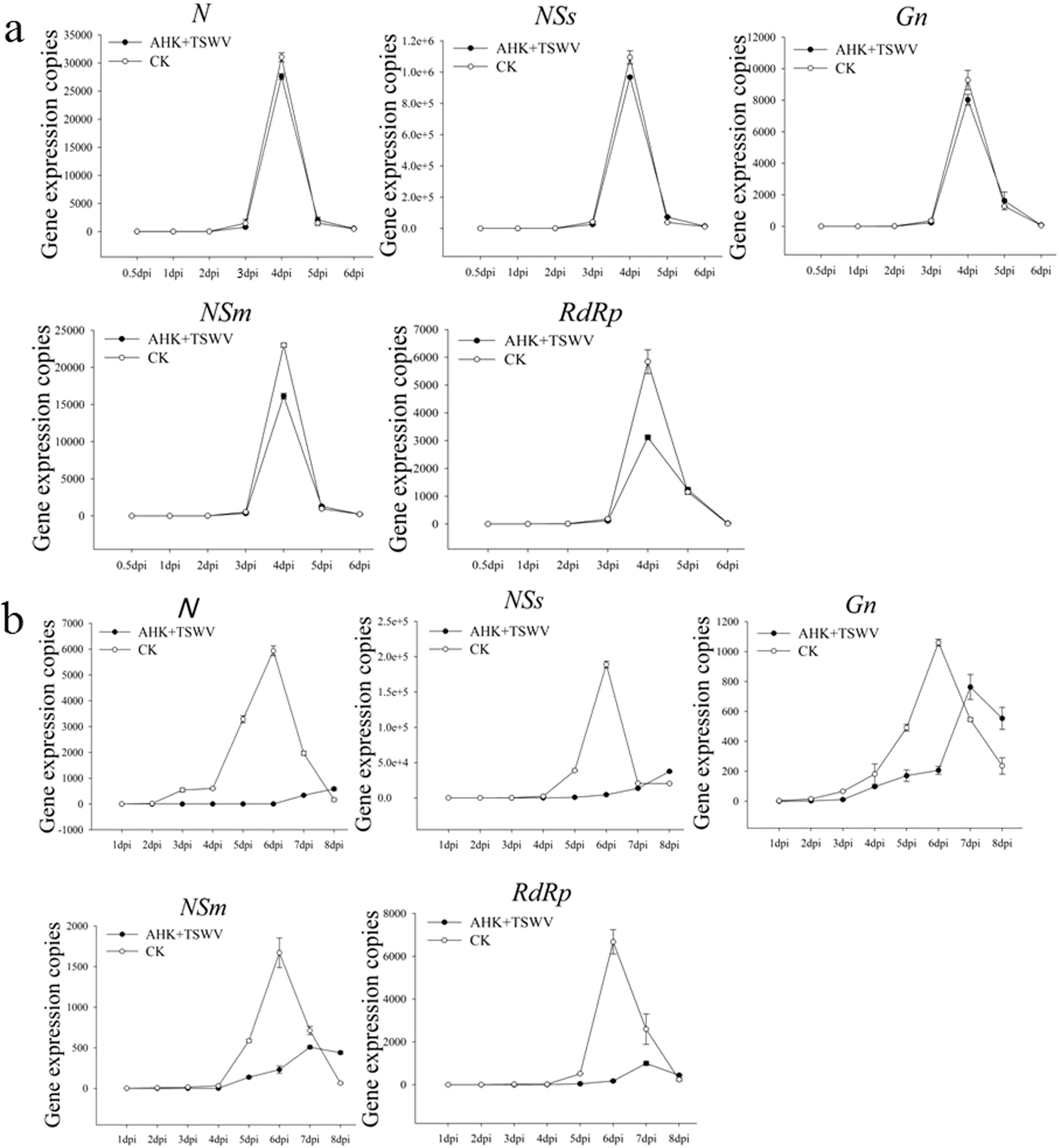

Levels of TSWV gene expression in AHK-treated leaves to assess the protective effect of AHK. Image (a) presents the level of TSWV gene expression with and without the AHK treatment in inoculated K326 leaves assayed by qRT-PCR; Image (b) presents the level of TSWV gene expression with and without the AHK treatment in systemic K326 leaves in the protective effect assay using qRT-PCR; CK: positive control (TSWV-infected tobacco).
